SmallRig NP-F Battery Adapter Mount Plate Kit for Canon EOS R5 / R5C and BMPCC 4K / 6K with Battery Power Cable USB-C interface

SmallRig NP-F Battery Adapter Mount Plate Kit for Canon EOS R5 / R5C and BMPCC 4K / 6K  (Advanced Edition) 4340

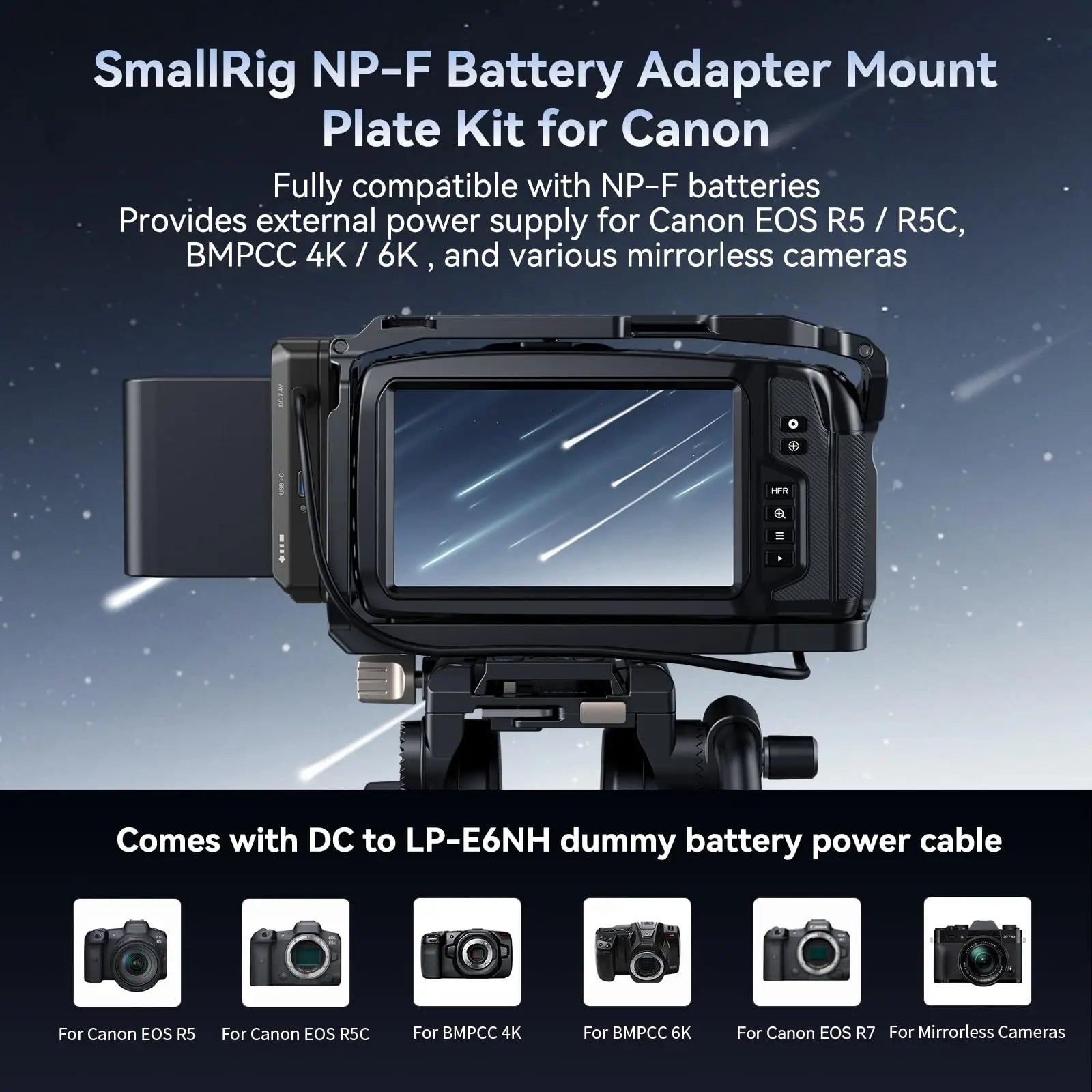

1. Compatible with NP-F type batteries, paired with DC to LP-E6NH dummy battery power cable, providing external power supply for Canon EOS R5 / R5C, BMPCC 4K / 6K and various mirrorless cameras

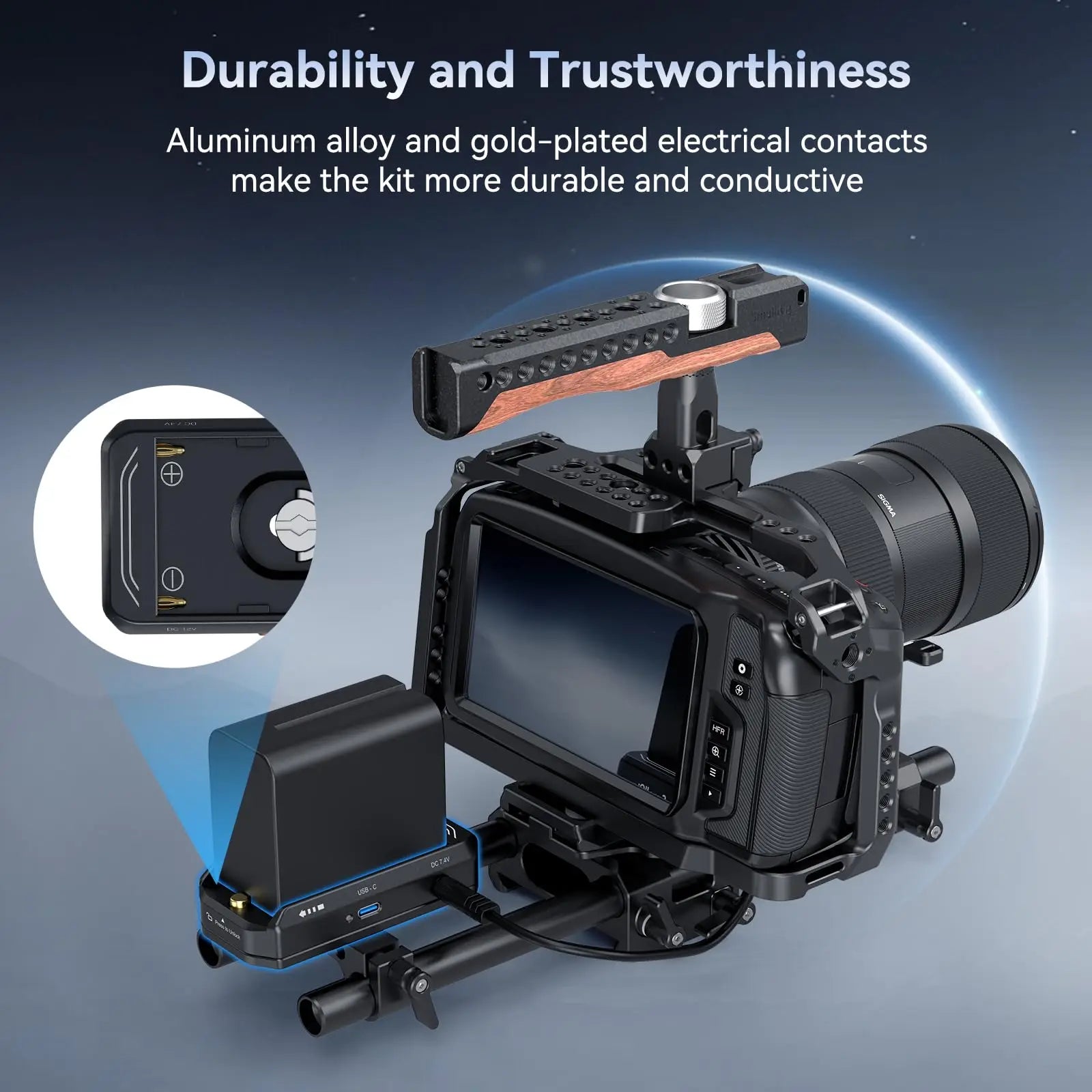

2. Aluminum alloy and gold-plated electrical contacts make it more durable and conductive

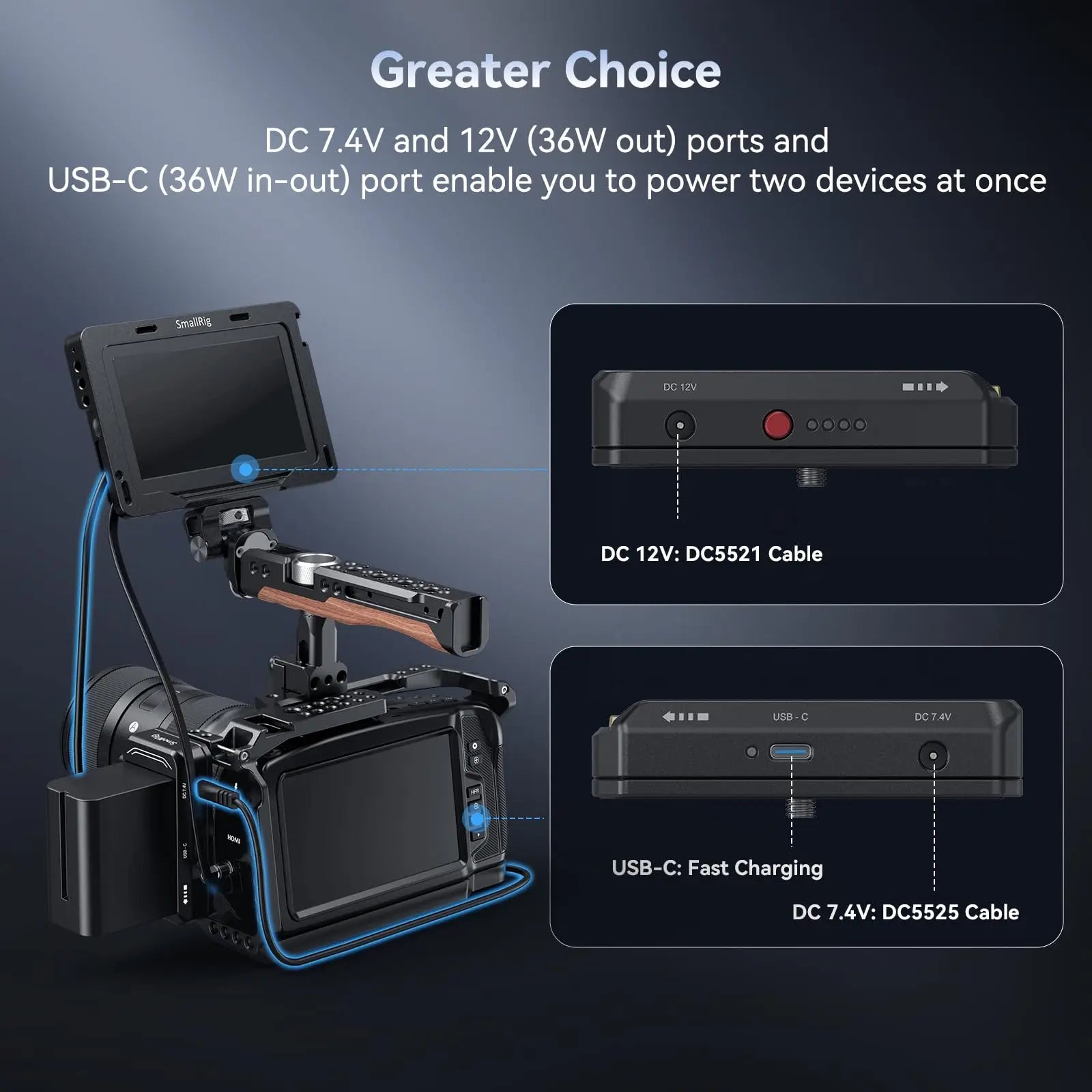

3. Allows to access two devices with DC 7.4V and 12V dual output Maximum DC and USB-C output: 36W

4. The USB-C interface supports bi-directional input and output with 36W power

5. Features automatic wake-up and sleep modes to avoid damage to the camera

6. Comes with USB-C mode and power indicators for easy viewing of charging and state of charge

Each output port features short circuit and high current protection to ensure safety during using

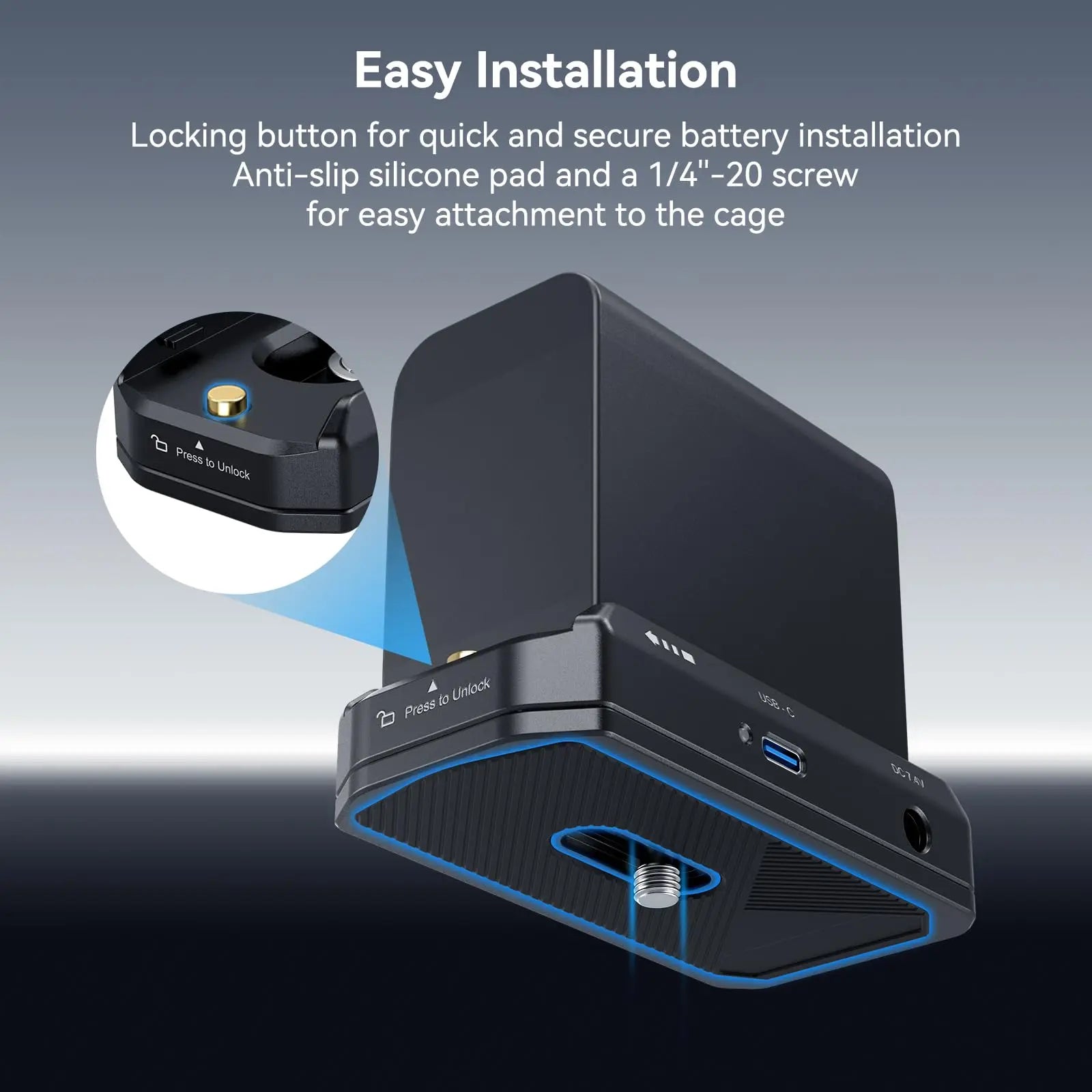

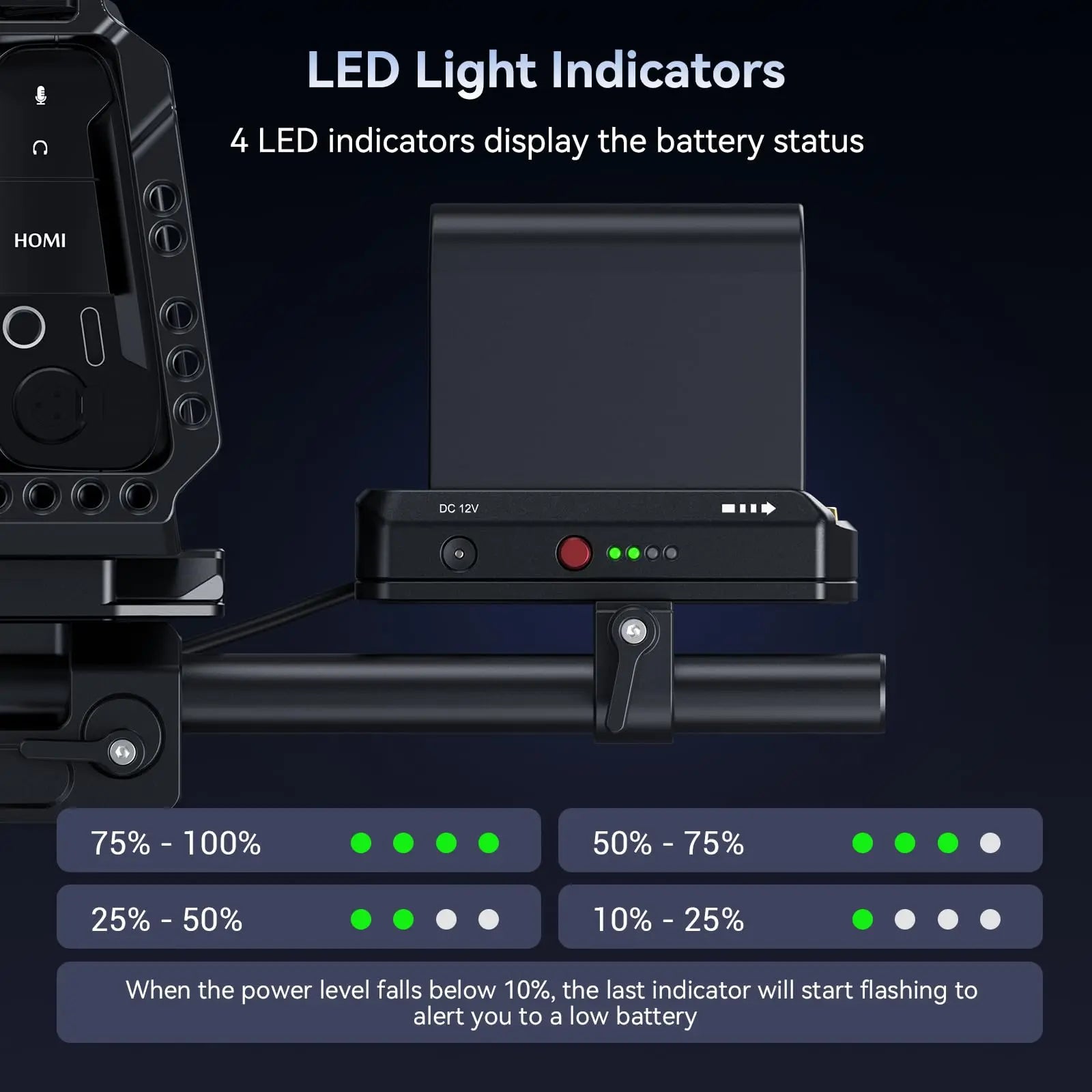

SmallRig NP-F Battery Adapter Mount Plate Kit for Canon EOS R5 / R5C and BMPCC 4K / 6K  (Advanced Edition) 4340 is designed to enable NP-F batteries on the market (including Sony original and third-party batteries) to power BMPCC 4K/6K, Canon R5 C, and various mirrorless cameras, the set can achieve long-lasting power supply. The NP-F Battery Plate is made of aluminum alloy with gold-plated electrical contacts to be more durable and conductive. The plate has a self-locking button for quick and secure battery installation and a 1/4''-20 threaded hole for easy attachment to the cage. There are 36W 7.4V / 12V DC output on its sides and a 36W USB-C port, which can output current or charge an NP-F battery. All ports have short circuit protection and automatic wake-up and sleep functions. In addition, this item features LED lights indicating USB charging and discharging state, battery connection, and battery life.

Compatibility:
3168B NP-F Battery Adapter Mount Plate: Sony NP-F battery
LP-E6NH Dummy Battery Power Cable: for Canon EOS 5D Mark II / 5D Mark III / 5D Mark IV / 6D / 6DMark II / 7D / 7DMark II / 60D / 60Da / 70D / 80D / 90D / XC10 / XC15 / 5DS / 5DSR / R / R5 / R6 / R5C / R7 / R6 Mark II and BMPCC 4K / 6K

In the Box:
3168B NP-F Battery Adapter Mount Plate x 1
DC5521 to LP-E6NH Dummy Battery Power Cable x 1
1/4''-20 Screw x 1
Allen Wrench x 1
User Manual x 1

Specifications:

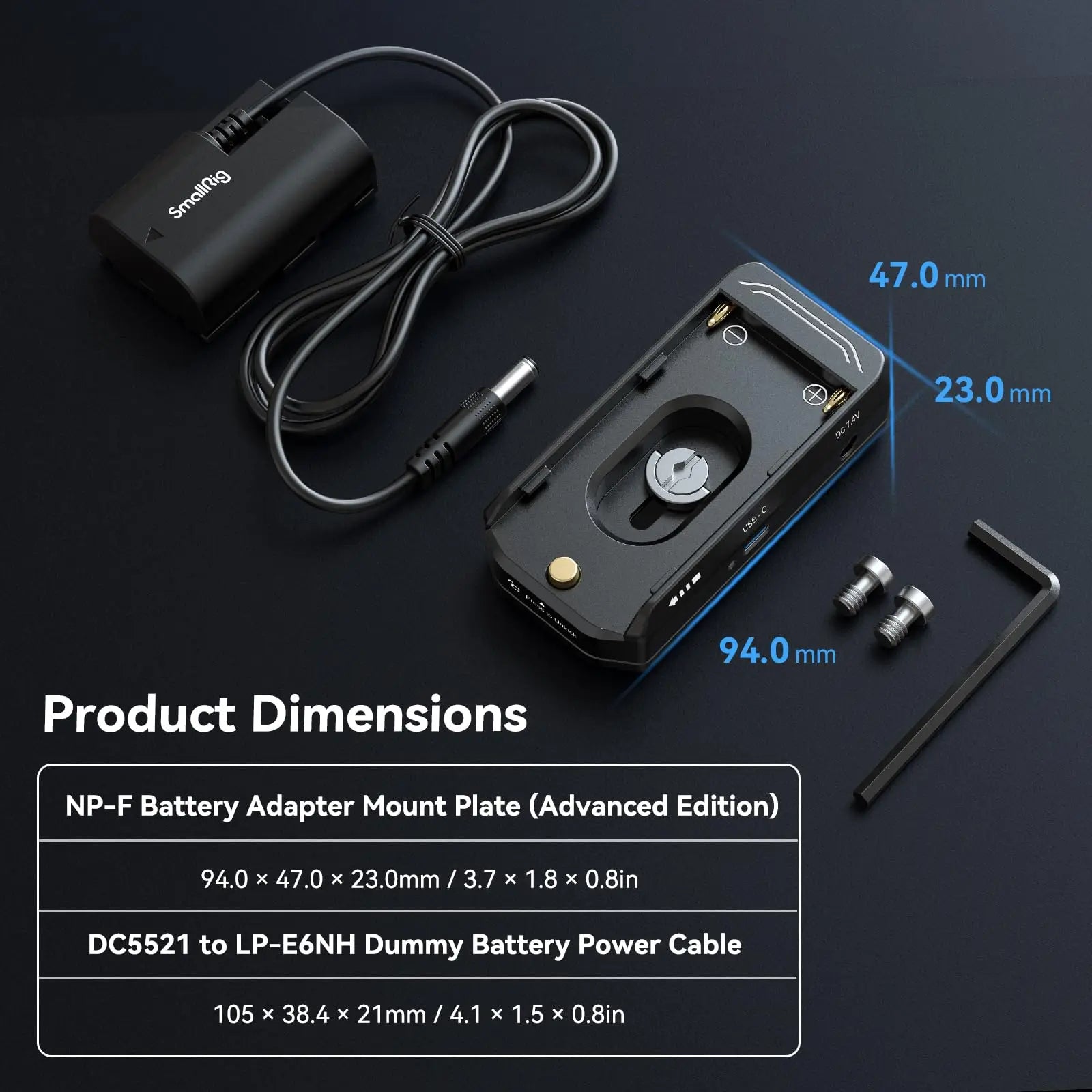

Product Dimensions: 94 x 47 x 23mm（3168B)
105 x 38.4 x 21mm(DC5521 to LP-E6NH Dummy Battery Power Cable)
Package Dimensions: 101 x 66 x 55mm
Product Weight: 150 ± 5g
Package Weight: 189.2 ± 5g
Material(s): CNC+ABS
