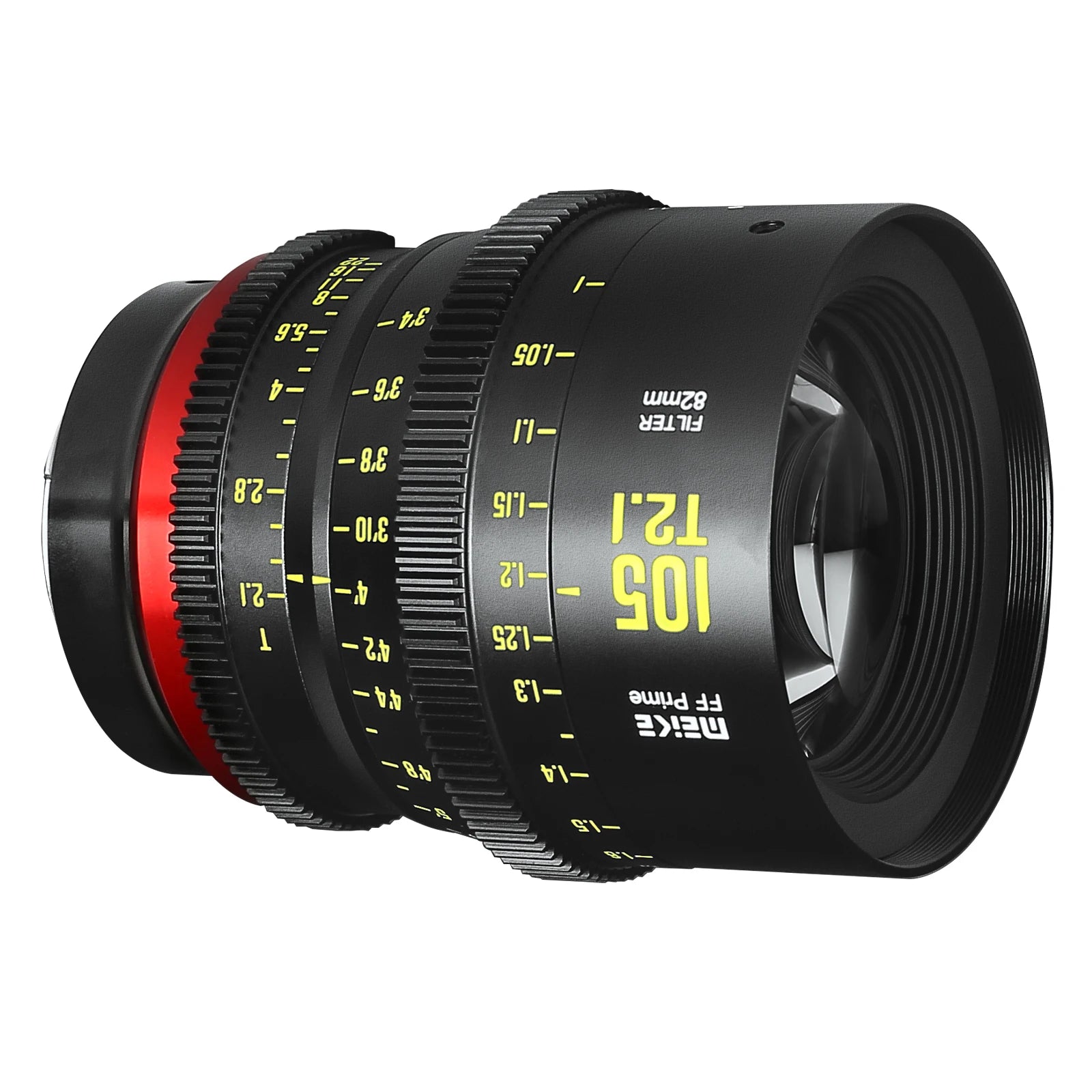

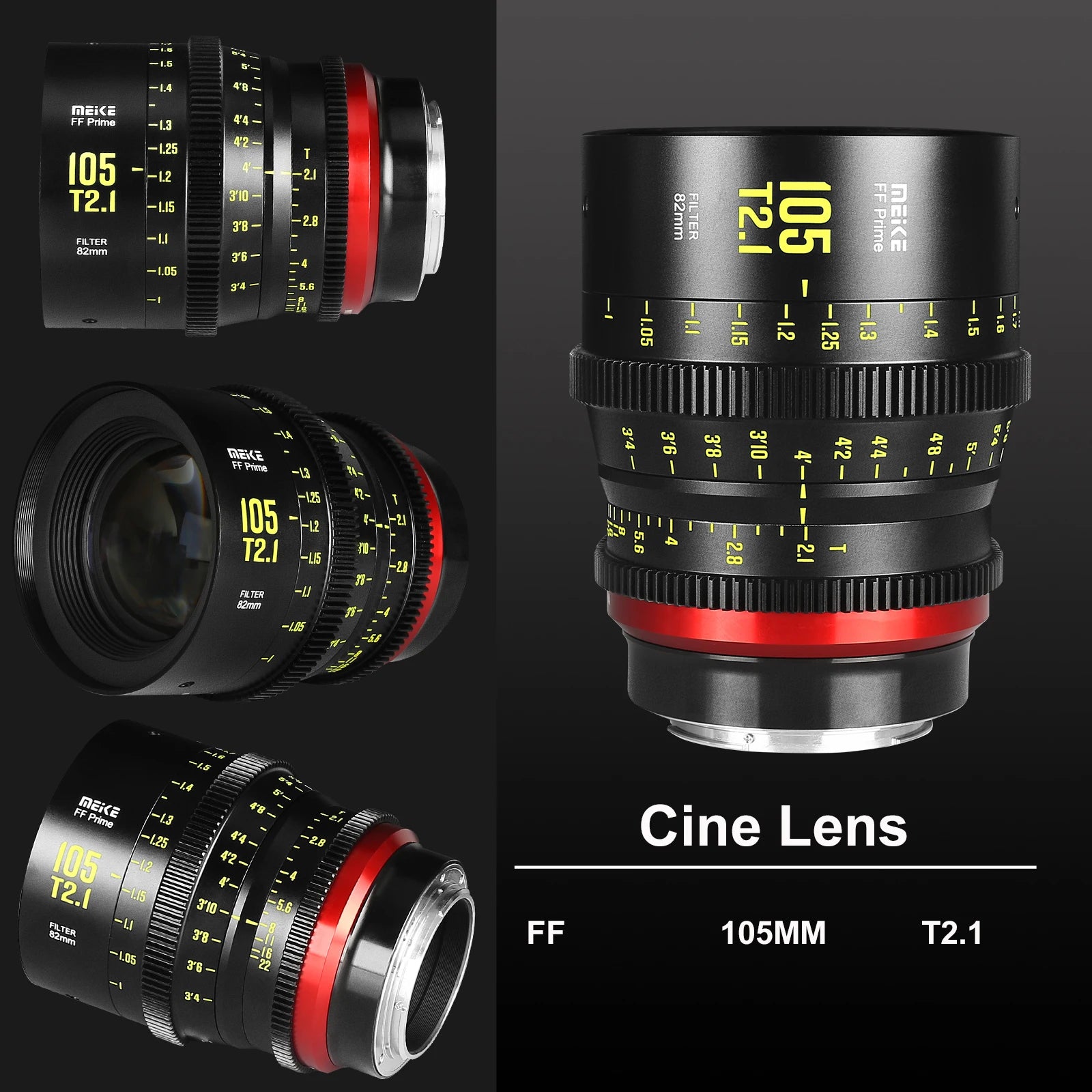

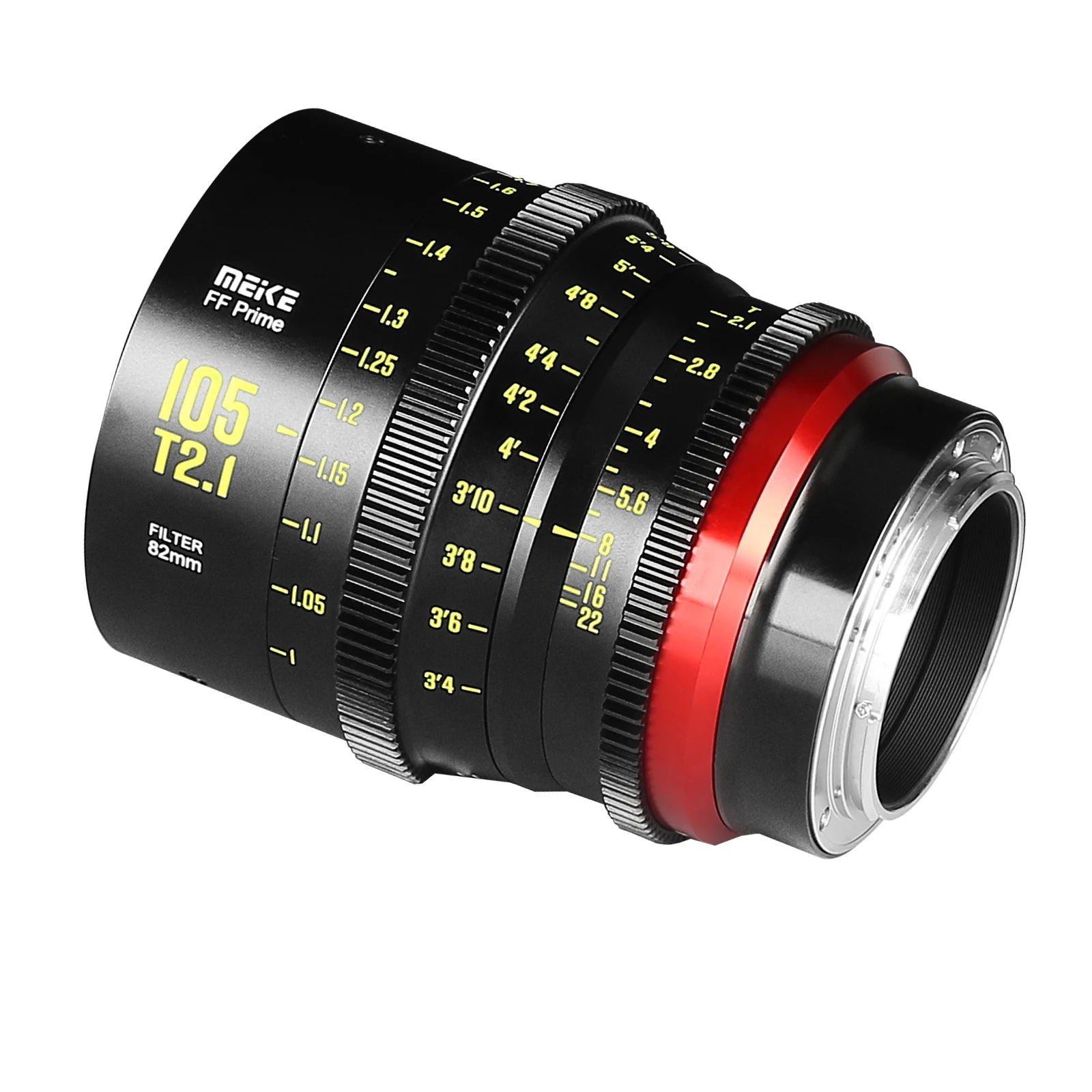

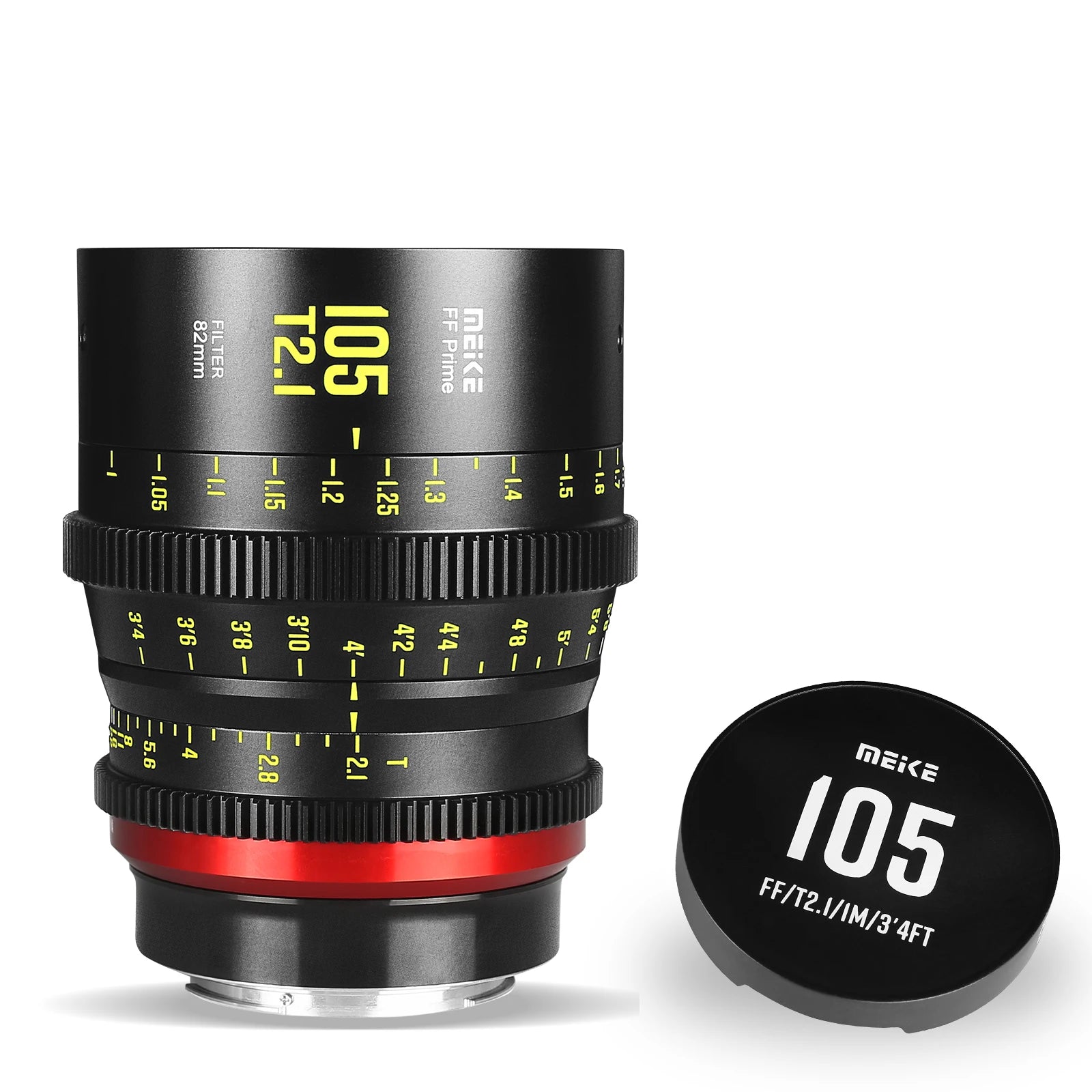

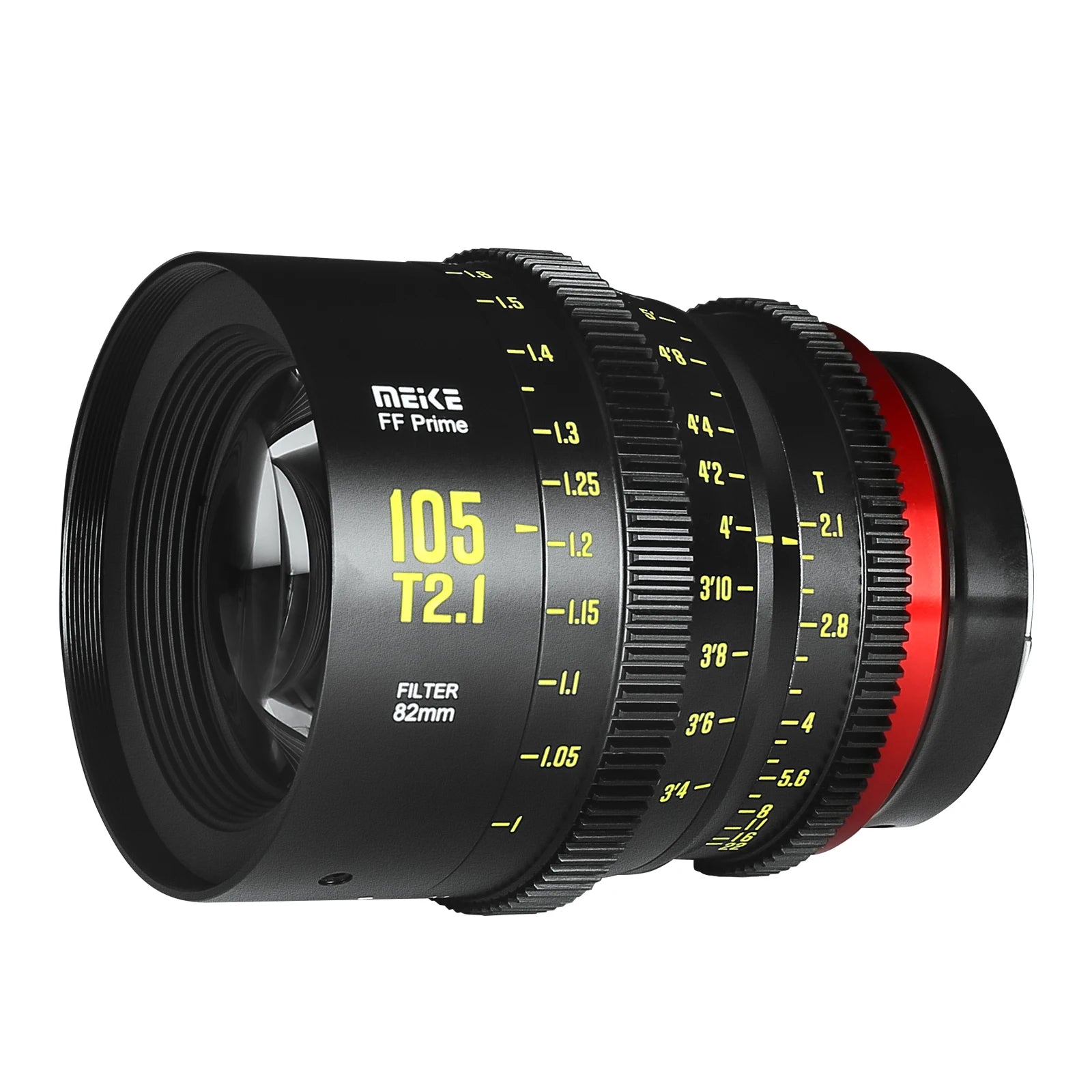

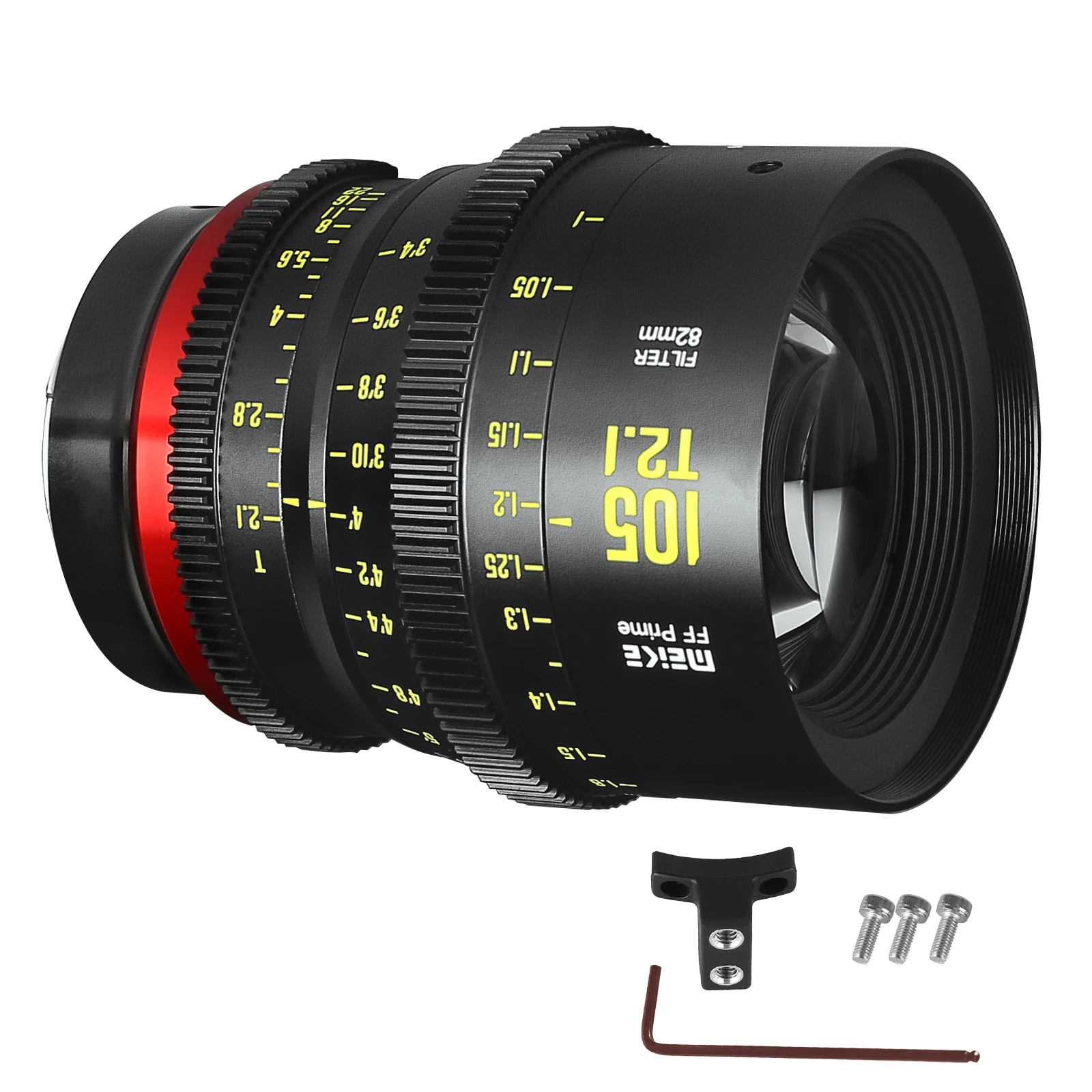

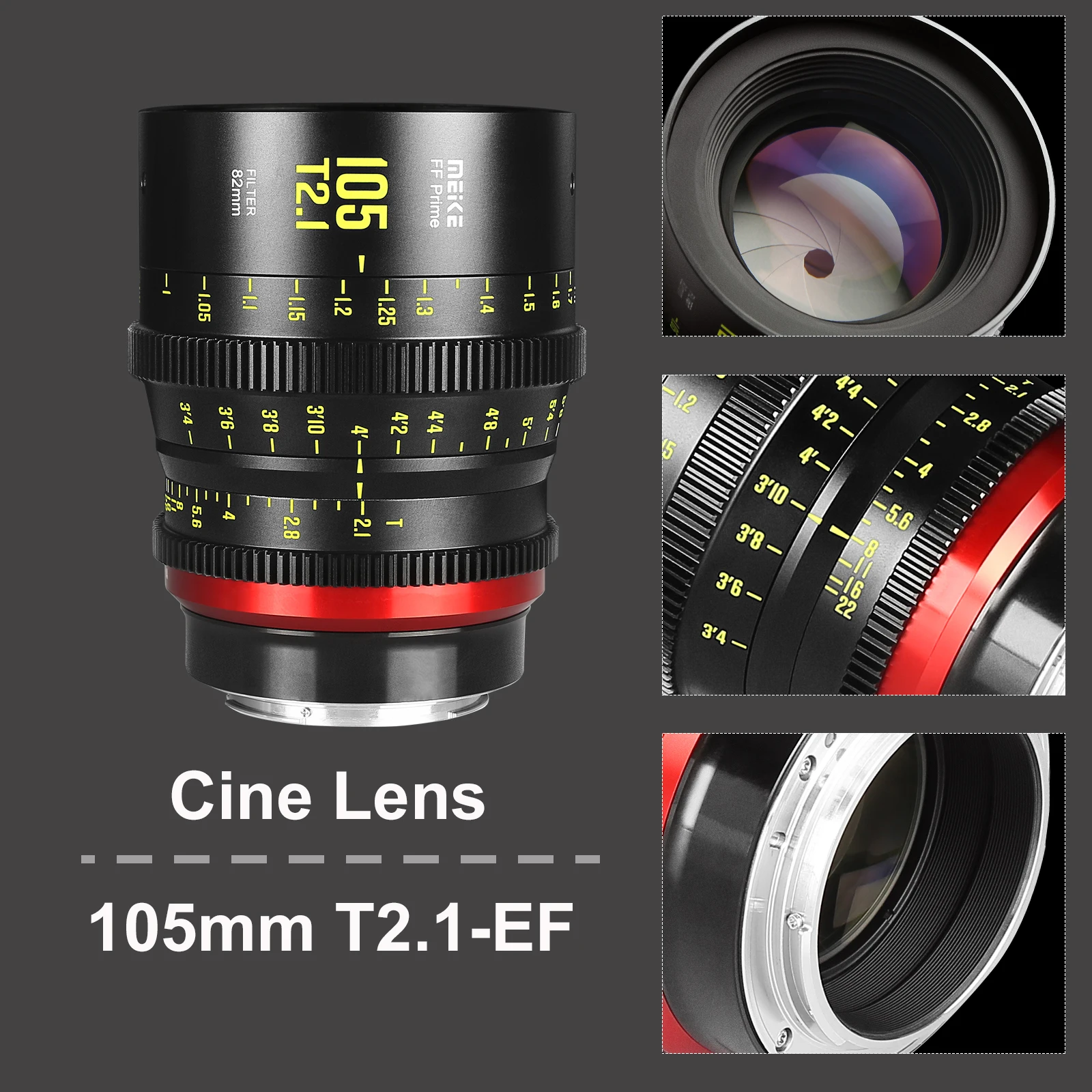

Meike Prime 105mm T2.1 Cine Lens for Full Frame Cinema Camera Systems,such as Canon C700 C500II,Sony VENICE,Sony FX3 FX6,FX9,Z Cam E2-F6,Alexa LF,Mavo LF, Mavo Edge 8K



This is Meike’s fifth full-frame cine lens and it now joins the Full Frame cine lens family. It covers an image circle of 45mm. It is available in either PL, Canon EF, Canon RF, Sony E, and Panasonic L mounts.

The complete set includes
16mmT2.5,24mmT2.1,35mmT2.1,50mmT2.1,85mmT2.1,105mmT2.1,135mmT2.4.

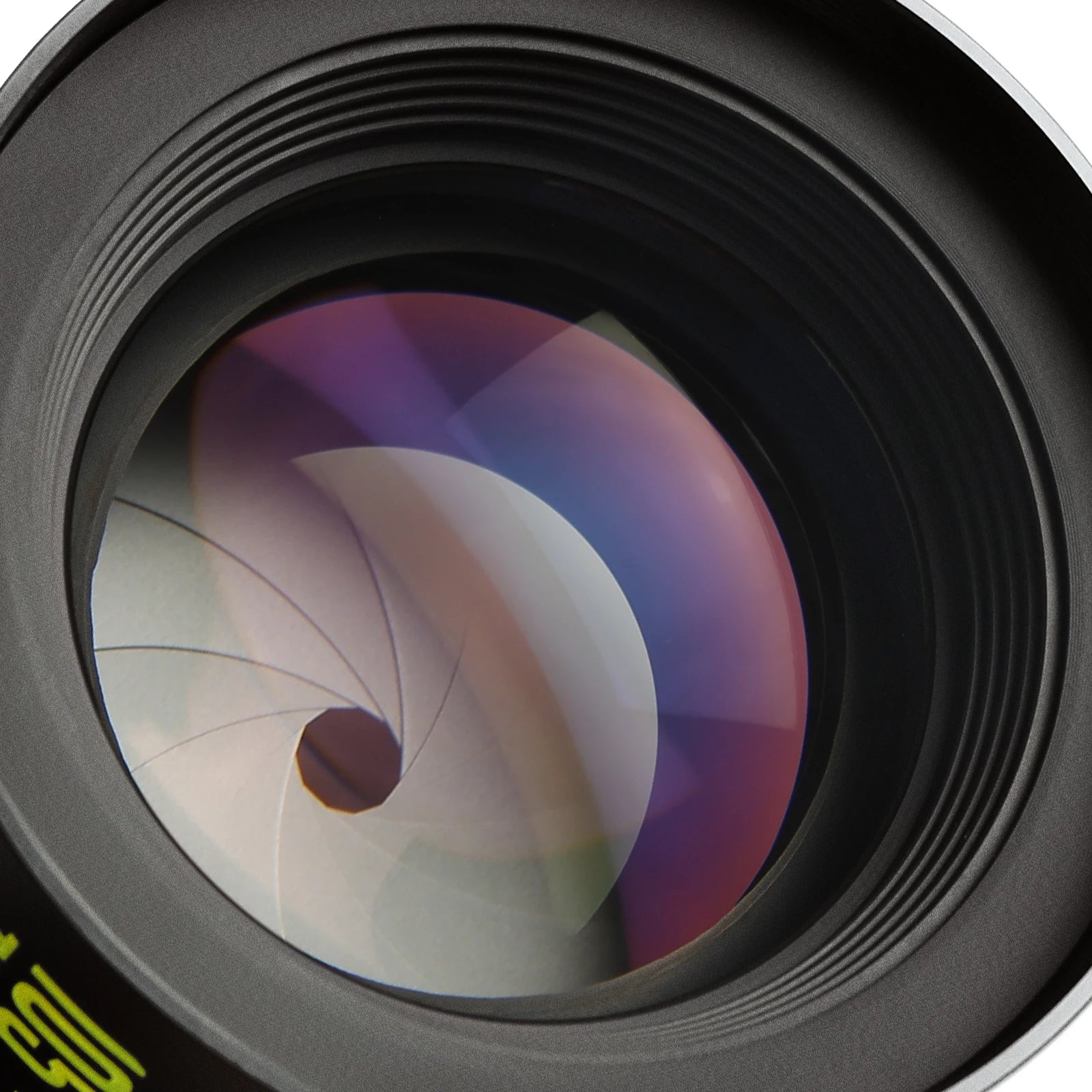

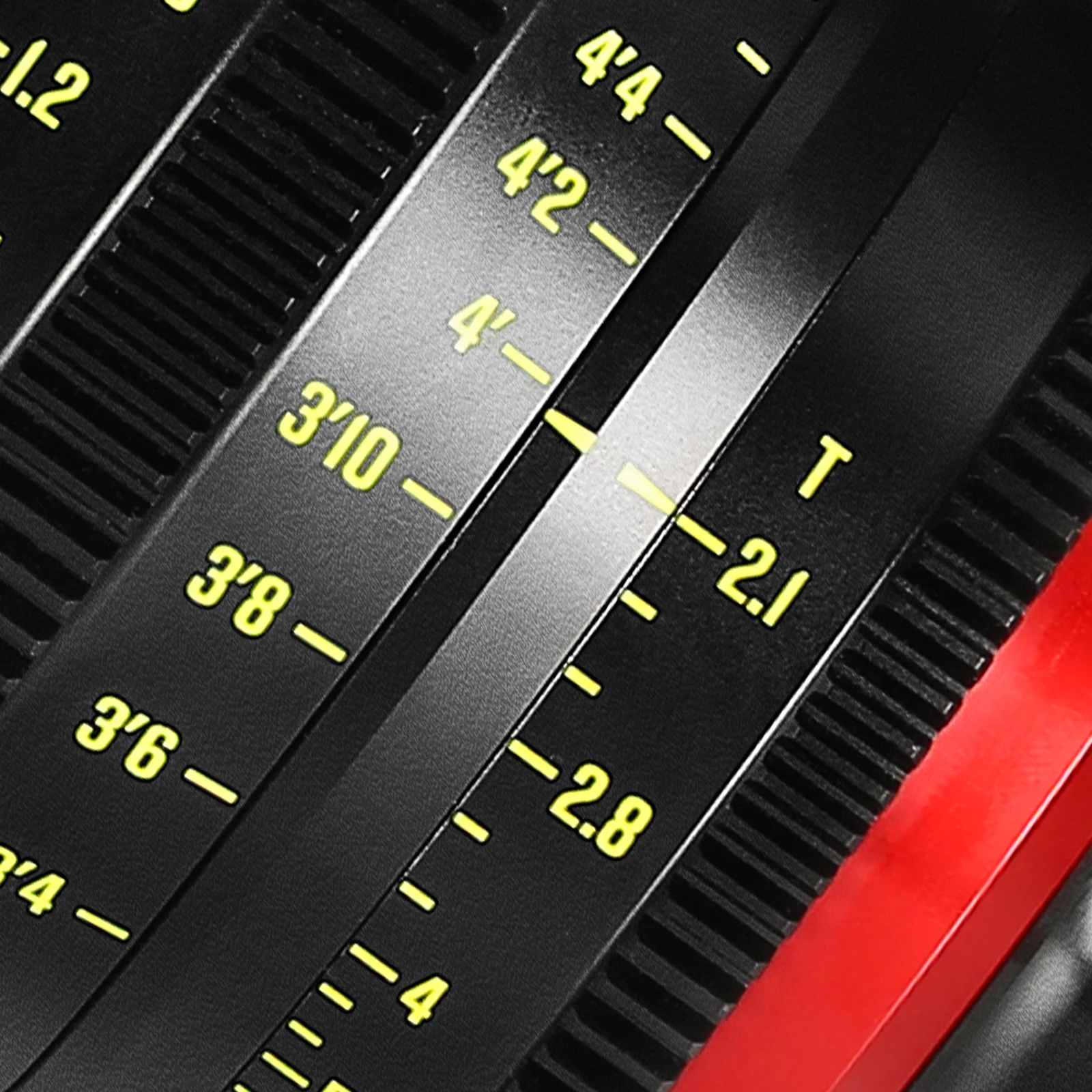

It has industry-standard 0.8mm pitch gears on the focus and aperture ring.The lens design of the Meike 105mm T2.1 FF-Prime consists of eleven elements in seven groups.The aperture mechanism consists of 11 aperture blades. The minimum focus distance is 100cm.



Compatible:

• Canon C700 C500II

• Sony VENICE

• Alexa LF

• Z Cam E2-F6

• Mavo LF

• Sony FX3 FX6,FX9

• All full-frame Sony, Panasonic. Canon, Sigma, Leica mirrorless

• All Super 35/ APS-C sensors

Specifications

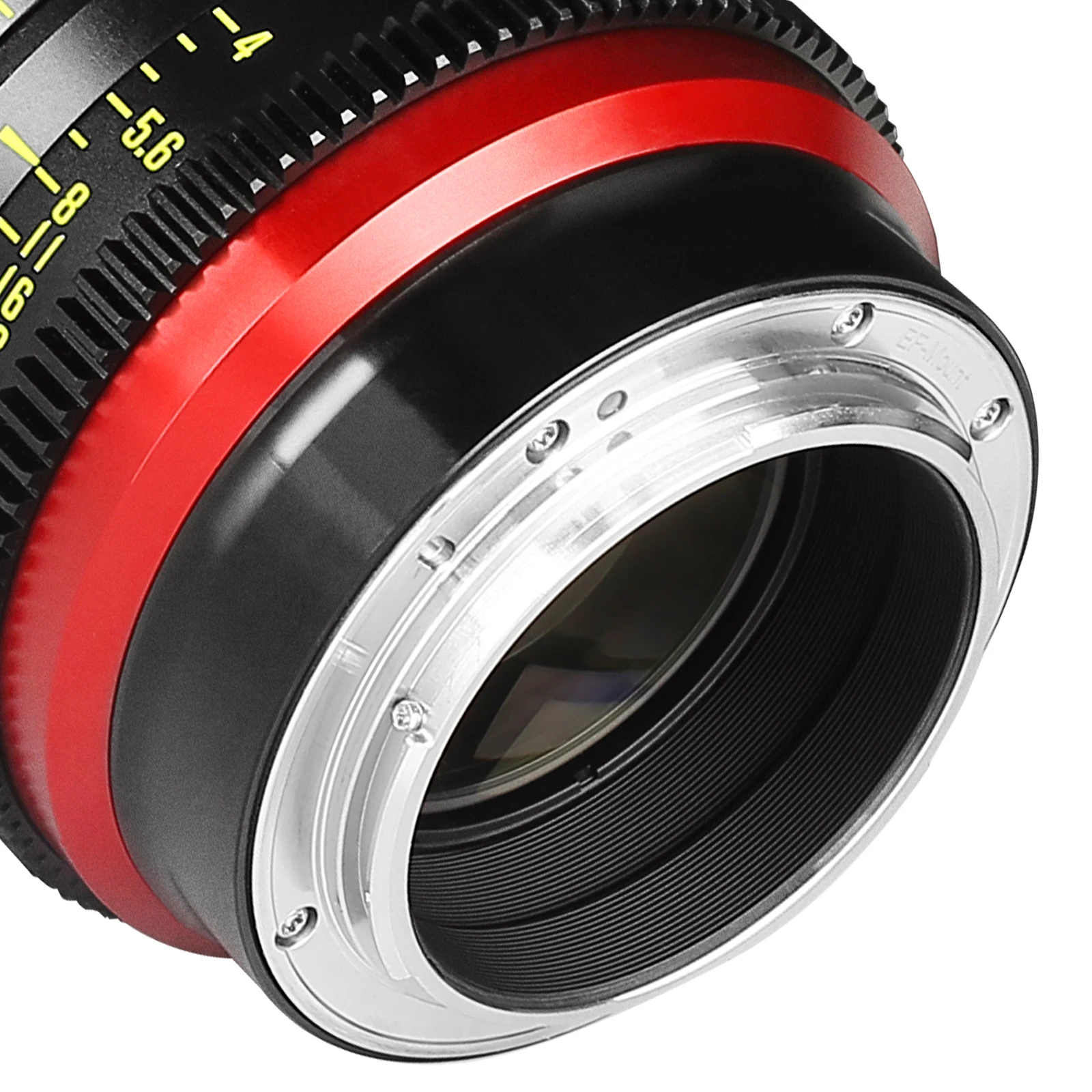

Lens Mount: PL/EF/RF/E/L

Min Focal Dist:100cm

Filter Thread:ø82

Image Circle:45mm

Structure:11 Elements in 7 Groups

Focal Length:105mm

Aperture Range:T2.1-T22

Iris Blades:11

Gear Mod:M0.8

Focus Rotation:330 Degree

Dimensions (Ø x L):

PL: ø89.6 × 102.4

EF(Canon): ø89.6 × 110.5

RF(Canon): ø89.6 × 134.4

E(Sony): ø89.6 × 136.4

L(Panasonic): ø89.6 × 134.4

Z(Nikon): ø89.6 × 138.4

Weight: 1110~1176g



FOV:

on FF cameras:

Diagonal:23.6°

Horizontal: 19.7°

Vertical: 13.2°



on APS-C camera：

Diagonal:15.6°

Horizontal: 13°

Vertical: 8.62°
