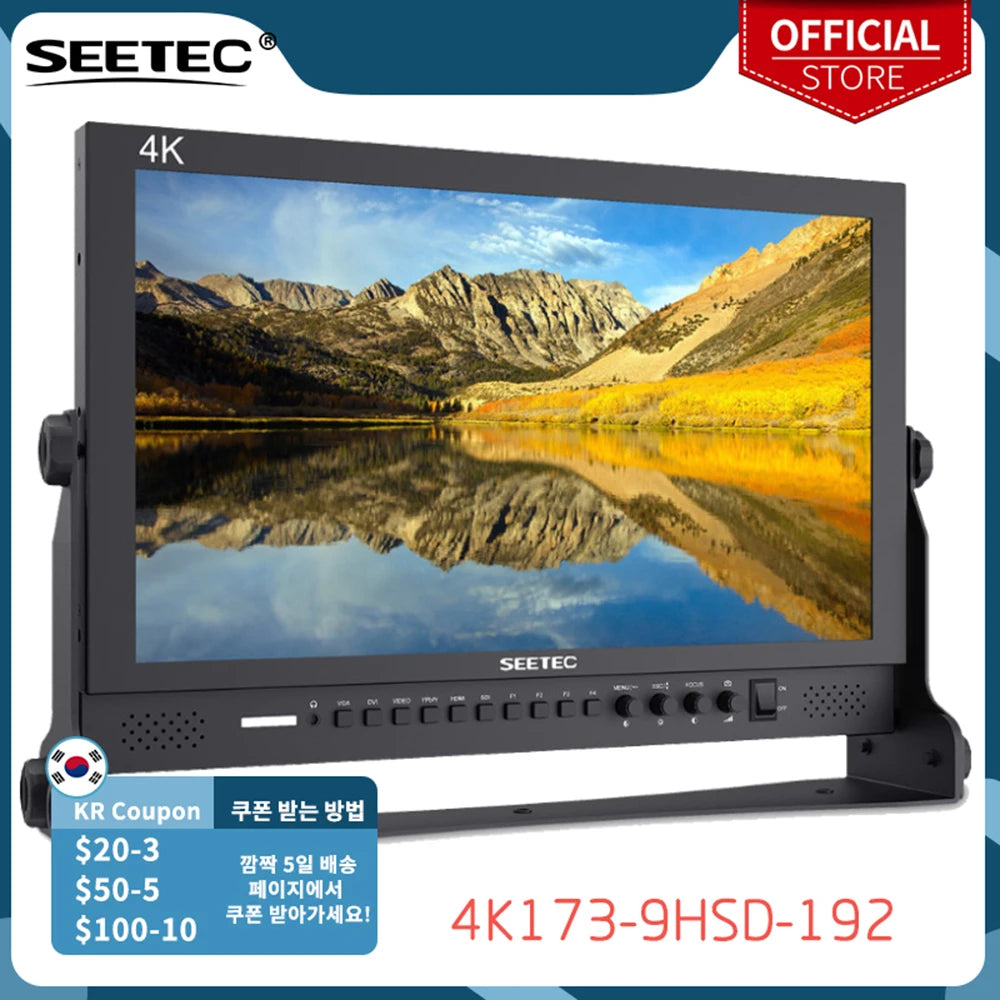

Seetec 4K173-9HSD-192(Original P173-9HSD) 17.3 Inch IPS Aluminum 1920x1080 FHD 3G-SDI HDMI 4K Broadcast Monitor with AV YPbPr
Couldn't load pickup availability
SEETEC Professional Broadcast LCD Monitor has been widely used in TV news production, broadcasting house, TV broadcasting truck and other fields. Since this series is working with other adjacent professional equipments, therefore, high stability, high reliability and electromagnetic compatibility are very important to make sure the whole system work smoothly.

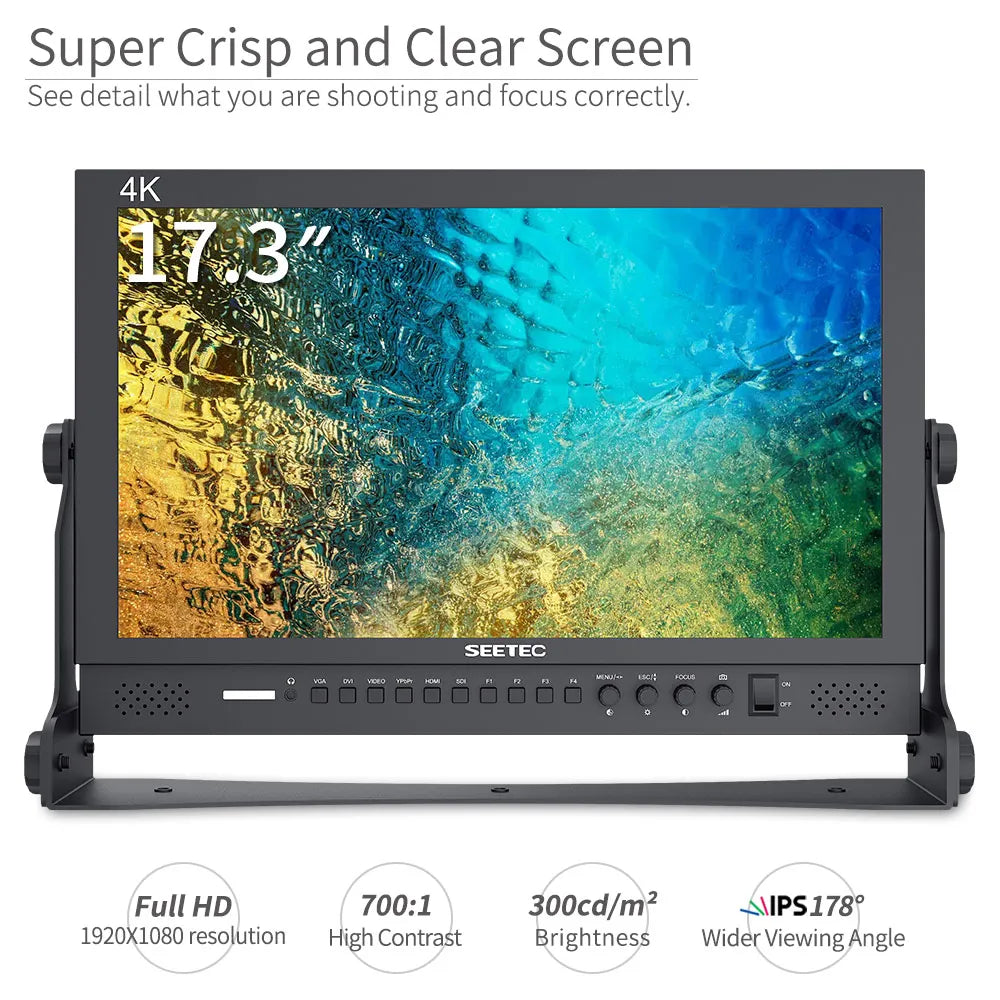

1920X1080 Full HD Panel
With the P173-9HSD's 17.3-inch 1920×1080 Full HD panel what you see is truly viewing angles outputting crisp, clear shots on the field, which means less time in the editing room. The P173-9HSD's Full HD Panel is the tool of choice for high quality color reproduction.
Stability and Reliability
The full aluminum case not only makes the product more solid and durable, but also solves the problem of heat dissipation. Full aluminum case improves the anti-interference capability!
Use Rec.709 color standard
SEETEC uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.
SEETEC monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.

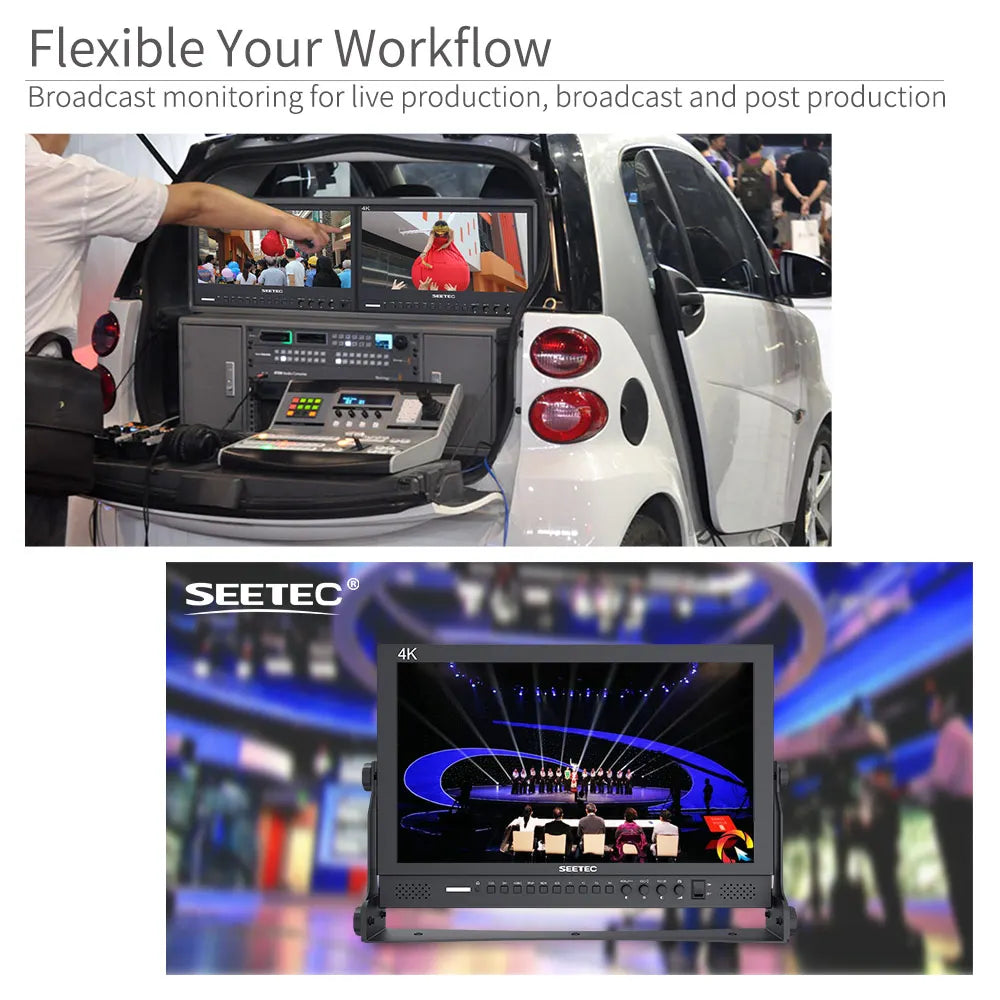

P173-9HSD is an incredibly high quality monitor that's versatile enough to be used from the broadcast facility, mobile live production or on set for feature film production! The monitor comes with 3G/HD/SD-SDI, HDMI, YPbPr, Audio, Video, DVI inputs. Multiple input formats to meet all HD, SD, analogue video signal input and display demand Professional functions set.
SEETEC monitor is ideal for high end broadcast monitoring because they feature high quality focus assist function, also includes check field, image freeze, image flip, center marker, safe frame, color temperature adjust, assist users to accurately monitor when shooting, making and playing movies/ videos.

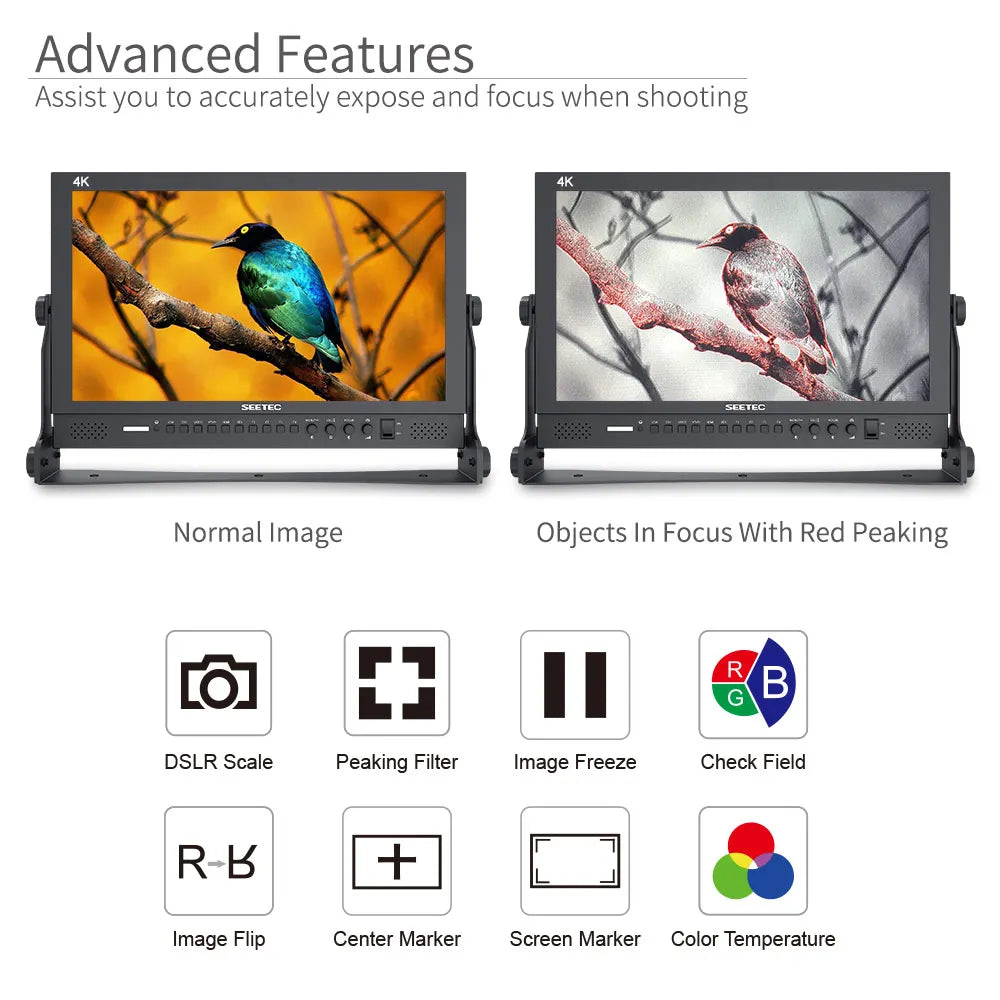

Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.
Camera Mode Function
It will be full screen under camera mode.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.
Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Image Flip
The Horizontal, Vertical and Hor&Ver of the image around flip.
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%,2.35:1)

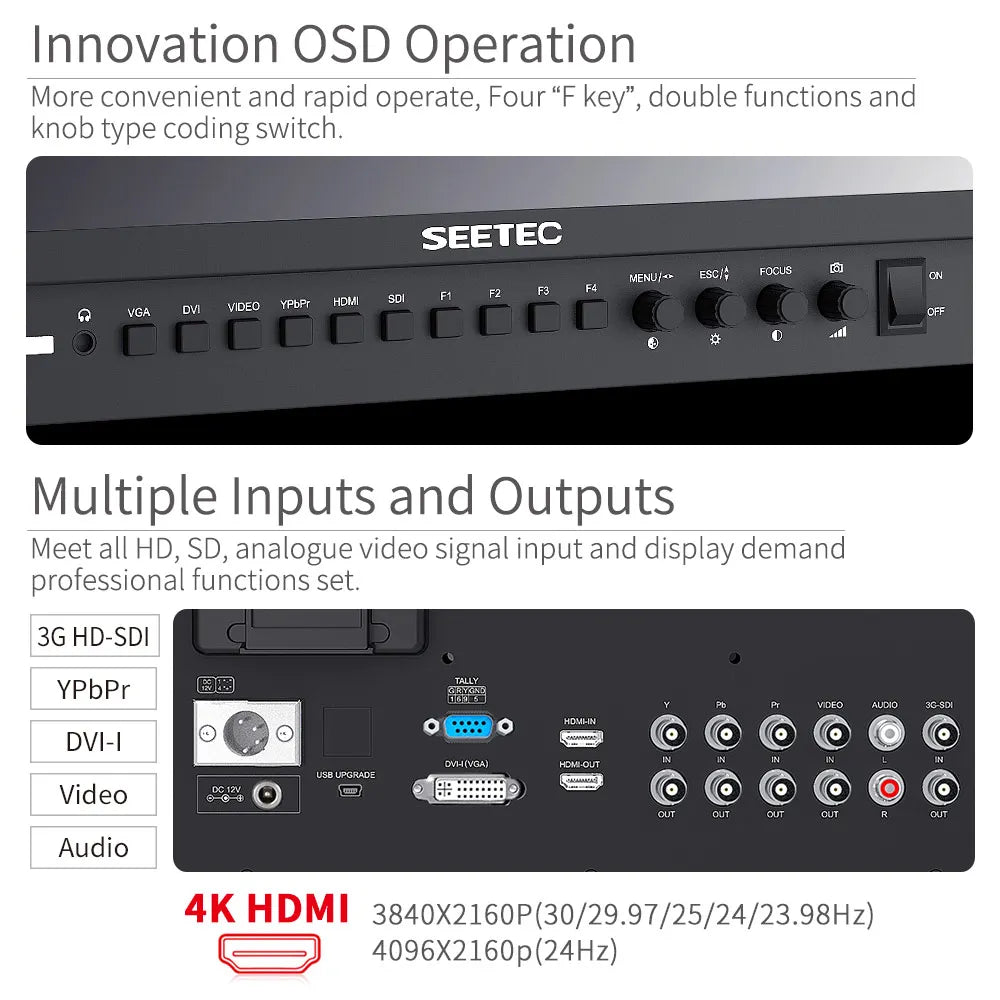

Innovation OSD Operation
Both front and rear side
There is front and rear TALLY lights for with 3 colors display (Red,Green,Yellow), and controlled via DB-9 ports on the rear panel.
Attach to camera support or hang it anywhere
There are 3 mounting points located on the U-shaped bracket. The standard sized mounting points make it easy to mount and are compatible with third party rigging equipment. Using the ¼ inch holes, you can hang it from rigs or mounted it on the camera support, and use it as a monitor for the entire crew. And you can also set it up on a table to monitor.
Monitoring anywhere you need it！
We've made it easy to power the monitor. P173-9HSD can be powered in two ways: with an DC adapter or lithium batteries. The P173-9HSD has a flexible battery system that supports V battery plate (standard), Anton Bauer battery plate of your choice.
New extended screen hood, to acquire the ideal visual effect in almost all environments.
|
1 X BNC |
3G-SDI |
|
1 X HDMI |
HDMI |
|
3 X BNC |
YPbPr |
|
1 X DVI-I |
DVI-I |
|
1 X BNC |
Video |
|
2 X RCA |
Audio(L/R) |
|
1 X BNC |
3G-SDI |
|
1 X HDMI |
HDMI |
|
3 X BNC |
YPbPr |
|
1 X BNC |
Video |
|
Audio Out |
Stereo Headphone, Speaker |
|
480i/576i |
|
720p(60/59.94/50/30/29/25/24/23.98) |
|
1080i(60/59.94/50) |
|
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
|
480i/576i/480p/576p |
|
1080i (60/59.94/50) |
|
720p (60/59.94/50/30/29/25/24/23.98) |
|
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
|
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz) |
|
Input Voltage |
DC9～24V |
|
Power Consumption |
≤26W |
|
Working Temperature |
-10°C~50°C |
|
Storage Temperature |
-20°C~60°C |
|
Unit Size |
426L×285H×35.1D mm (W/O Bracelet) |
|
Unit Weight |
2.75kg (W/O Bracket) / 3.30kg (W/ Bracket) |
|
* Peaking Focus Assist(Red highlight over parts of the monochrome image in focus) |
|
* Center Marker |
|
* Screen Marker (80%,85%,90%,93%,96%,2.35:1) |
|
* Image Freeze |
|
* Image Flip (H, V, H/V) |
|
* Camera Mode |
|
* Pixel-to-Pixel |
|
* Check Field (Red,Green,Blue,Mono) |
|
* Zoom All (Nonsupport in 4K input) |
|
* U/D & L/R Zoom (Nonsupport in 4K input) |
|
* Aspect Ratio (Nonsupport in 4K input) |
|
* Custom Color Temperature |
|
* Built-in LED tally indicators |

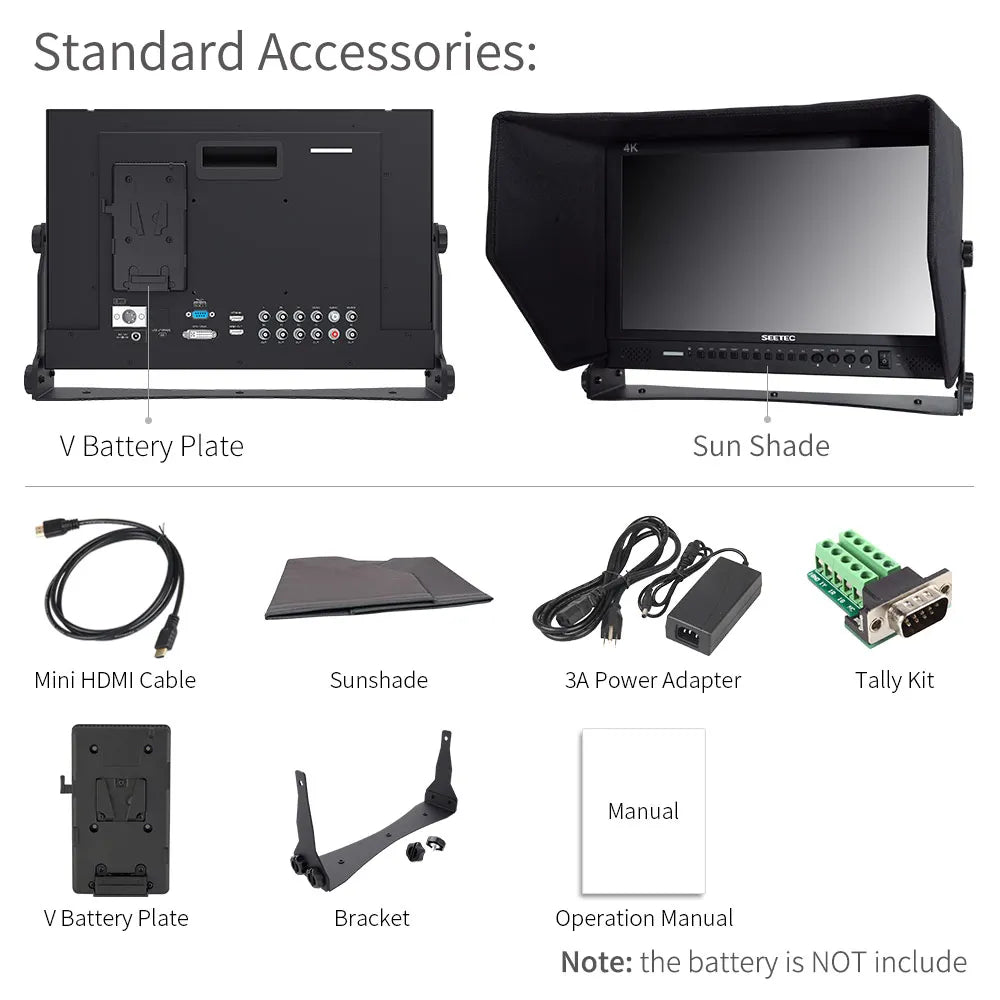

1× Mini HDMI Cable
1× V Battery Plate
1× 3A Power Adapter
1× Tally Kit
1× Sunshade
1× U bracket
1× Operation Manual
