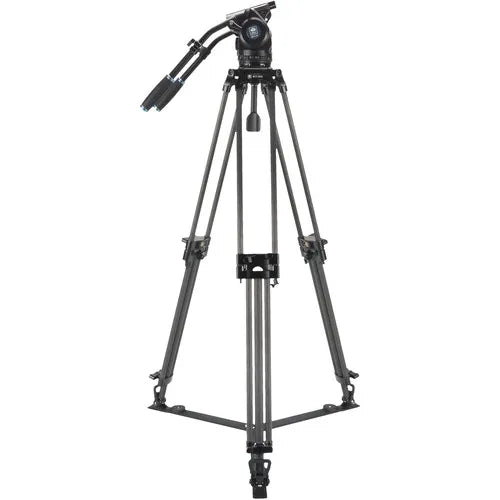

AVShutterSirui BCT-3203 Carbon Fiber Tripod With BCH-30 Video Head Bundle 39.5 lb Payload 100mm Bowl Heavy-Duty 3-Section Tripod
Sirui BCT-3203 Carbon Fiber Tripod With BCH-30 Video Head Bundle 39.5 lb Payload 100mm Bowl Heavy-Duty 3-Section Tripod

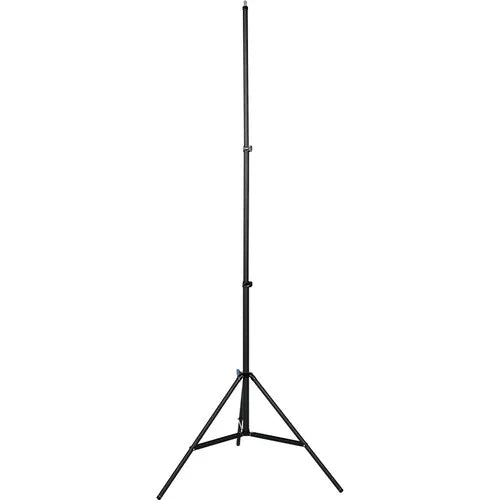

Sirui Carbon Fiber Air-Cushioned Light Stand (9.2') 22 lb 2.7' Air-Cushioned for Easy Adjustment
AVShutterSirui Carbon Fiber Air-Cushioned Light Stand (9.2') 22 lb 2.7' Air-Cushioned for Easy Adjustment

Sirui Jupiter 24mm T2 Full Frame Cine Overview



This Jupiter 24mm T2 Full Frame Macro Cine Lens from Sirui captures sharp macro shots with full frame camera sensors using their ARRI PL-mount. It features an aperture range of T2 to T22 for a deep or shallow depth of field, depending on your cinematic vision. A lens construction of 13 elements in 11 groups creates a smooth, circular bokeh with minimal focus breathing. The focus ring can rotate up to 202.4°, and both focus and iris rings have 0.8 MOD cinema-standard gears for intuitive manual controls.

Focus distance and iris marks are displayed in both meters and feet. The lens has a minimum focus distance of 9.4" for compatibility with many matte boxes and adapters. A 92mm filter thread with a filter pitch of 0.75 allows you to attach filters of your choosing to further customize the light quality and effects of the lens.

Features at a Glance

  • Maximum T2 aperture for low-light advantage, deeper depth of field, and increased area of focus

  • Cinema industry-standard 0.8 MOD focus and iris gears compatible with follow focus and iris controls, unified positioning across focal lengths

  • Lens construction of 13 elements in 11 groups for smooth, circular bokeh

  • Manually focus on objects as close as 9.4" away

  • Capable of recording 8K resolution video

  • Set of 10 shims included for adjusting flange distance

  • Sirui Jupiter 24mm T2 Full Frame Cine Specs



Key Specs

Focal Length
24mm

Maximum Aperture
T2

Lens Mount
ARRI PL

Lens Format Coverage
Full Frame

Filter Thread
92 mm x 0.75

Image Stabilization
No

Electronic Communication
No

Maximum Aperture
T2

Minimum Aperture
T22

Lens Mount
ARRI PL

Interchangeable Mount
No

Lens Format Coverage
Full Frame

Image Circle
Not Specified by Manufacturer

Angle of View
Not Specified by Manufacturer

Optical Design
13 Elements in 11 Groups

Filter Thread
92 mm x 0.75

Minimum Focus Distance
From Unspecified Point in Lens: 9.4" / 23.9 cm

Maximum Magnification Ratio
Not Specified by Manufacturer

Diaphragm Blades
11

Image Stabilization
No

Gear Standard
0.8 MOD

Gear Rotation
Focus 202.4°

Electronic Communication
No

Diameter
Maximum: 3.7" / 95 mm
Focus Ring: 3.5" / 88 mm
Iris Ring: 3.5" / 88 mm

Length
4.1" / 103.7 mm

Weight
2.76 lb / 1.25 kg
Packaging Info

Package Weight
4.135 lb

Box Dimensions (LxWxH)
8.5 x 6.1 x 6"
