2-Way Pan Tilt Head with handle PH-01G
Model: PH-01G
2-Way Pan Tilt Head with handle
Base Diameter:1. 5in / 38mm
Height:2.8in / 68mm
Weight:10.3oz / 291g
Load Capacity:6.6Ib / 3KG
Base Mounting Socket:UNC3/8
Material: Aluminum alloy T6061

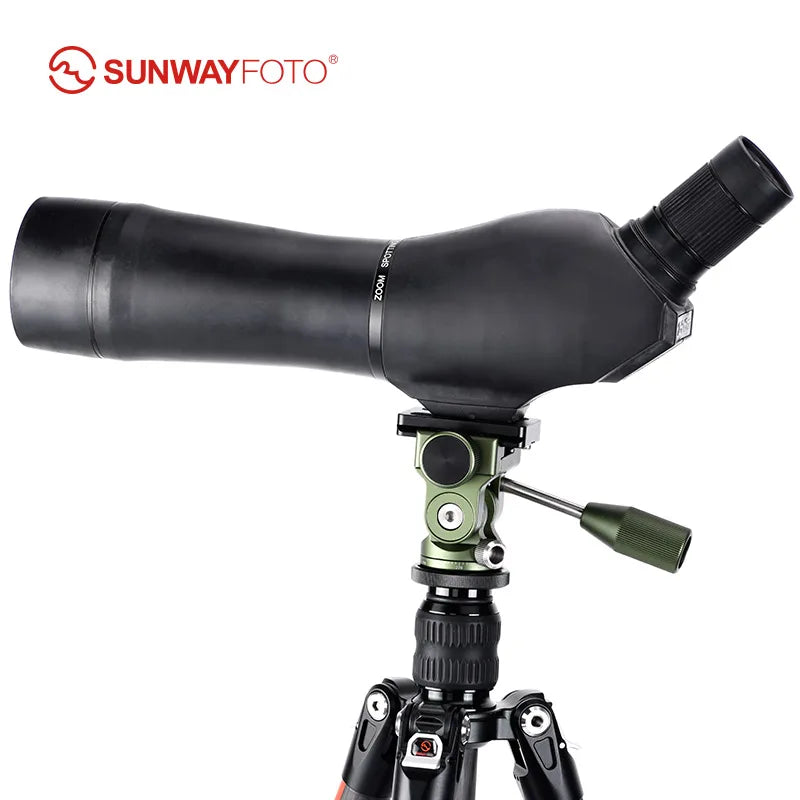

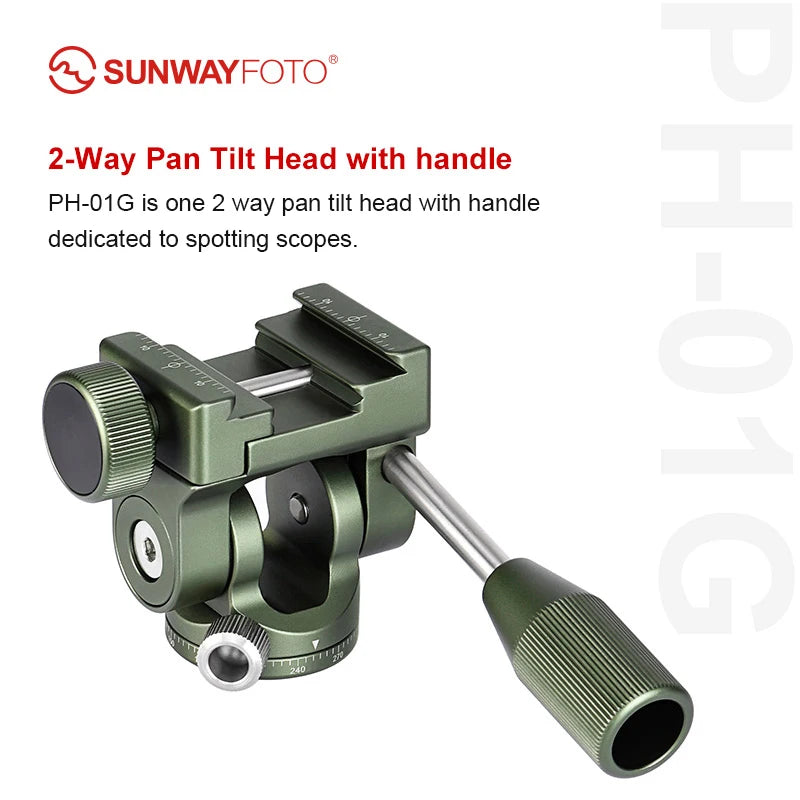

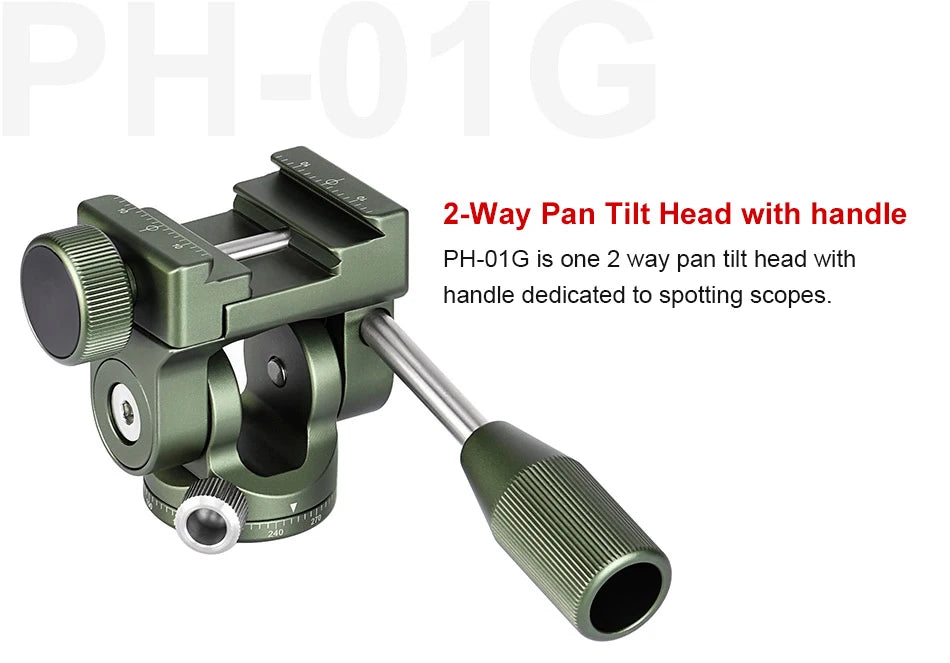

PH-01G is one 2 way pan tilt head with handle dedicated to spotting scopes.
Product Features:

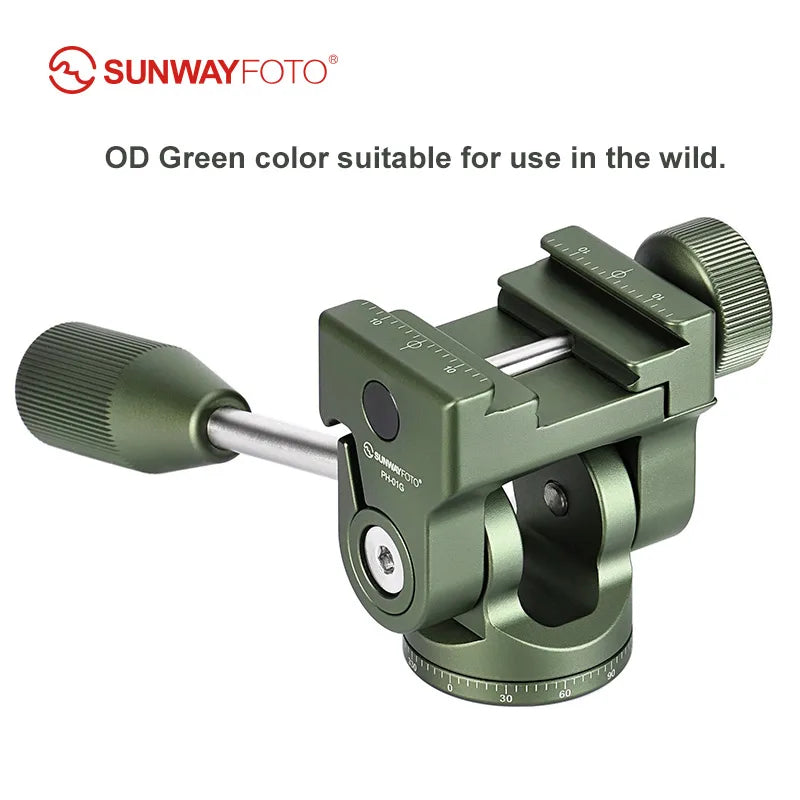

T6061 grade aluminum main body, elaborately CNC machined with hard-anodized finish ensuring it’s resistant to abrasion and corrosion which extends the service life of the product.OD Green color suitable for use in the wild.

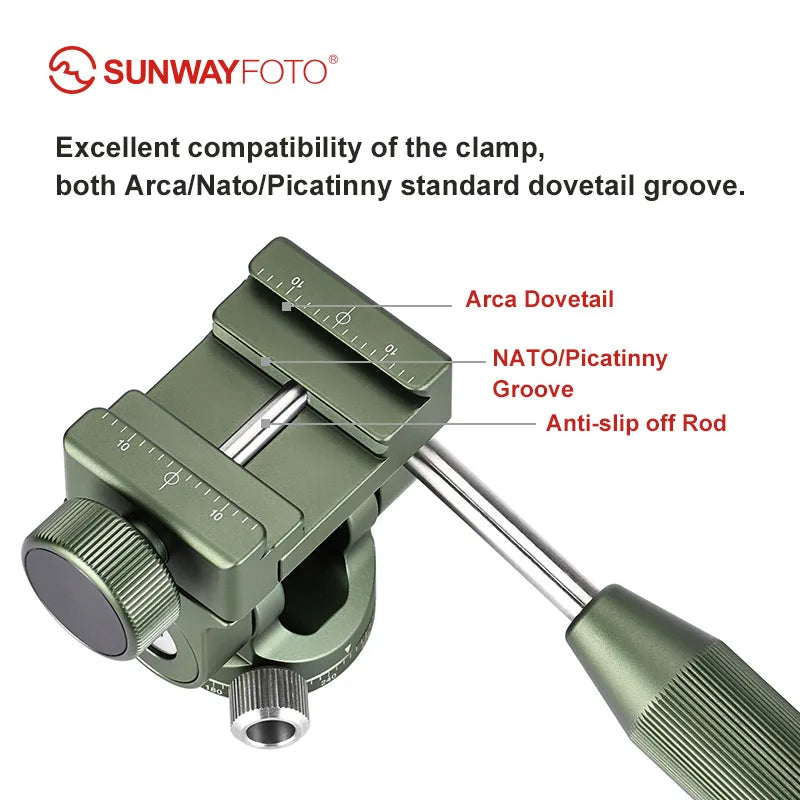

Excellent compatibility of the clamp, both Arca/Nato/Picatinny standard dovetail groove. Anti-slip block effectively prevents the equipment from accidental drops.

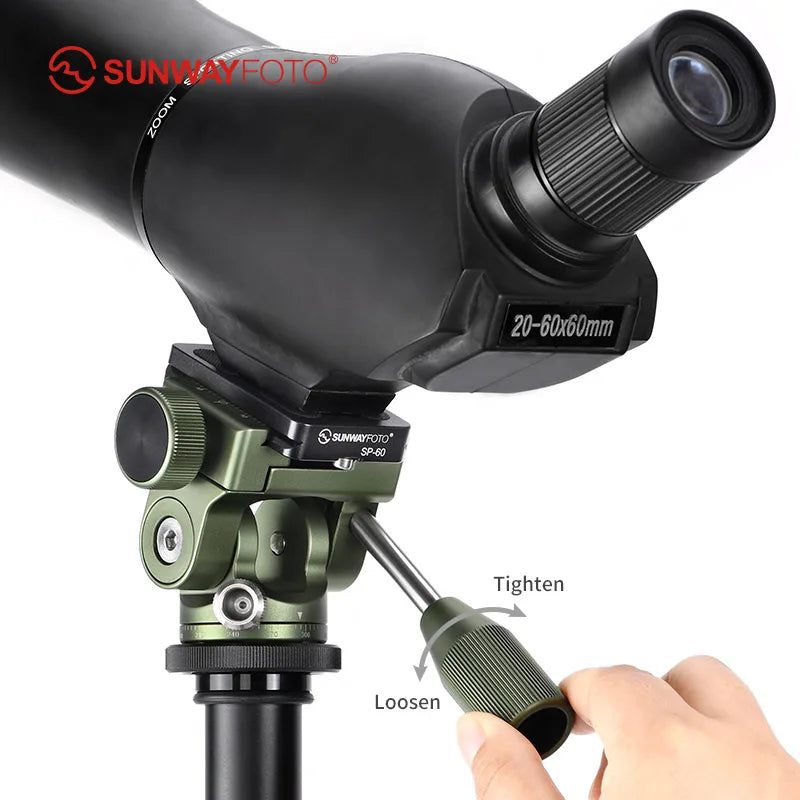

Removable elongated handle ensures quick turning of the head. Specially made to go with telescope, easy to operate. Fore-aft tilting angle of 90 degrees, lock desired angle by the handle.
360-degree rotatable base, smooth and quiet. Tighten the lock-knob to lock the base at desired angle horizontally.
Weighs10.3oz.(291g) with load capacity of 6.6lb.(3kg), base diameter 38mm, height 2.56in.(65mm), compact and lightweight.
Arca QR plate SP-60 is included and comes with two screws of 1/4-20 and 3/8-16 standards each.
Base mounting socket: 3/8-16, comes with 1/4-20 to 3/8-16 bushing adapter.
