FEELWORLD F6 PLUSX Touch Screen 5.5 Inch Portable Monitor Camere DSLR 3D LUT Full HD 1920x1080 Video Focus Assist Support 4K HDM



5.5" 1600nit Field Monitor

FEELWORLD F6 PLUSX is a high brightness 1600nit 5.5 inch HDMI monitor that’s perfect for vloggers, creatives and photographers.Go anywhere and see everything exactly how you want it with F6 PLUSX.

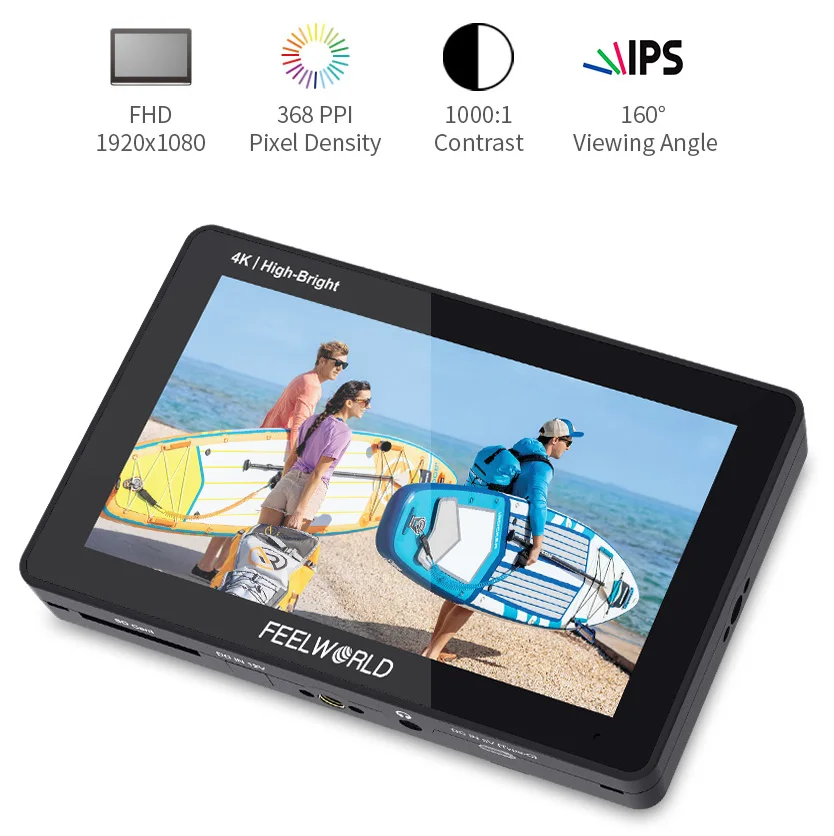

Full HD 1920x1080 IPS Panel

With extremely high resolution IPS panel, 16.7M(8bit) color gamut, provides excellent details,accurately reflect the original colors.





1600nits, Daylight Viewable

Backed by 1600nits of brightness, F6 PLUSX isn't afraid to get a little sun. The screen visible clearly even outdooor shooting, no need to use sun-hood.

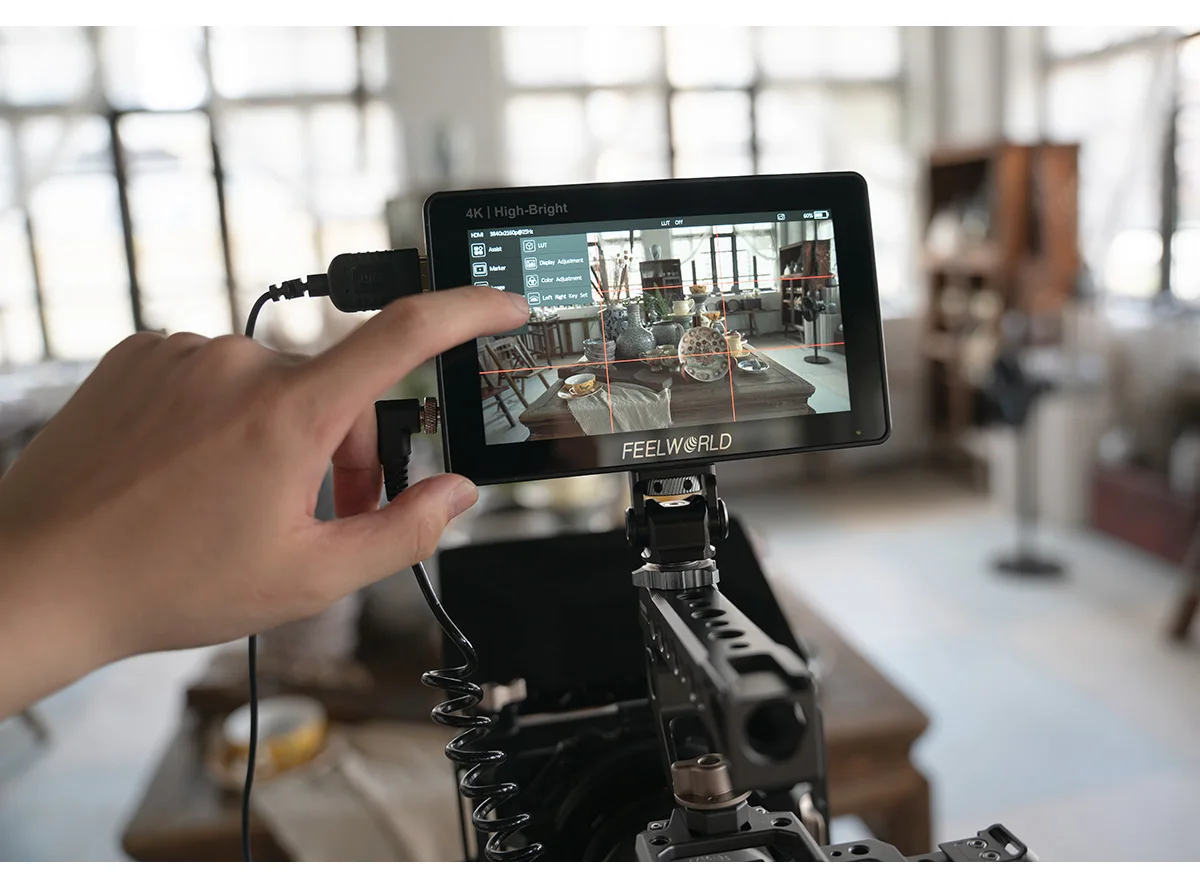

Sensitive Touch Screen Control

The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons.

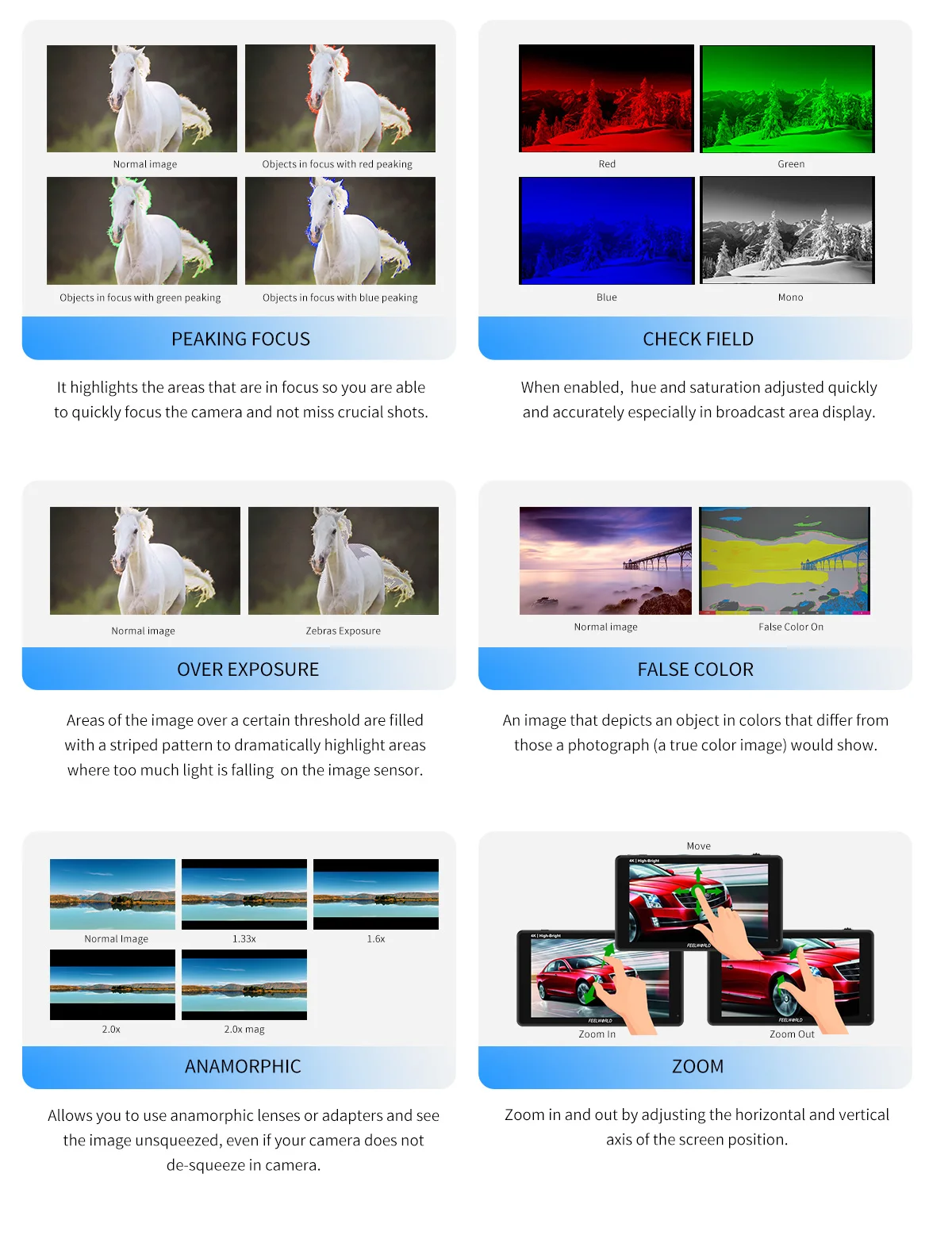

Professional Auxiliary Tools, Help You Focus and Exposure Accurately

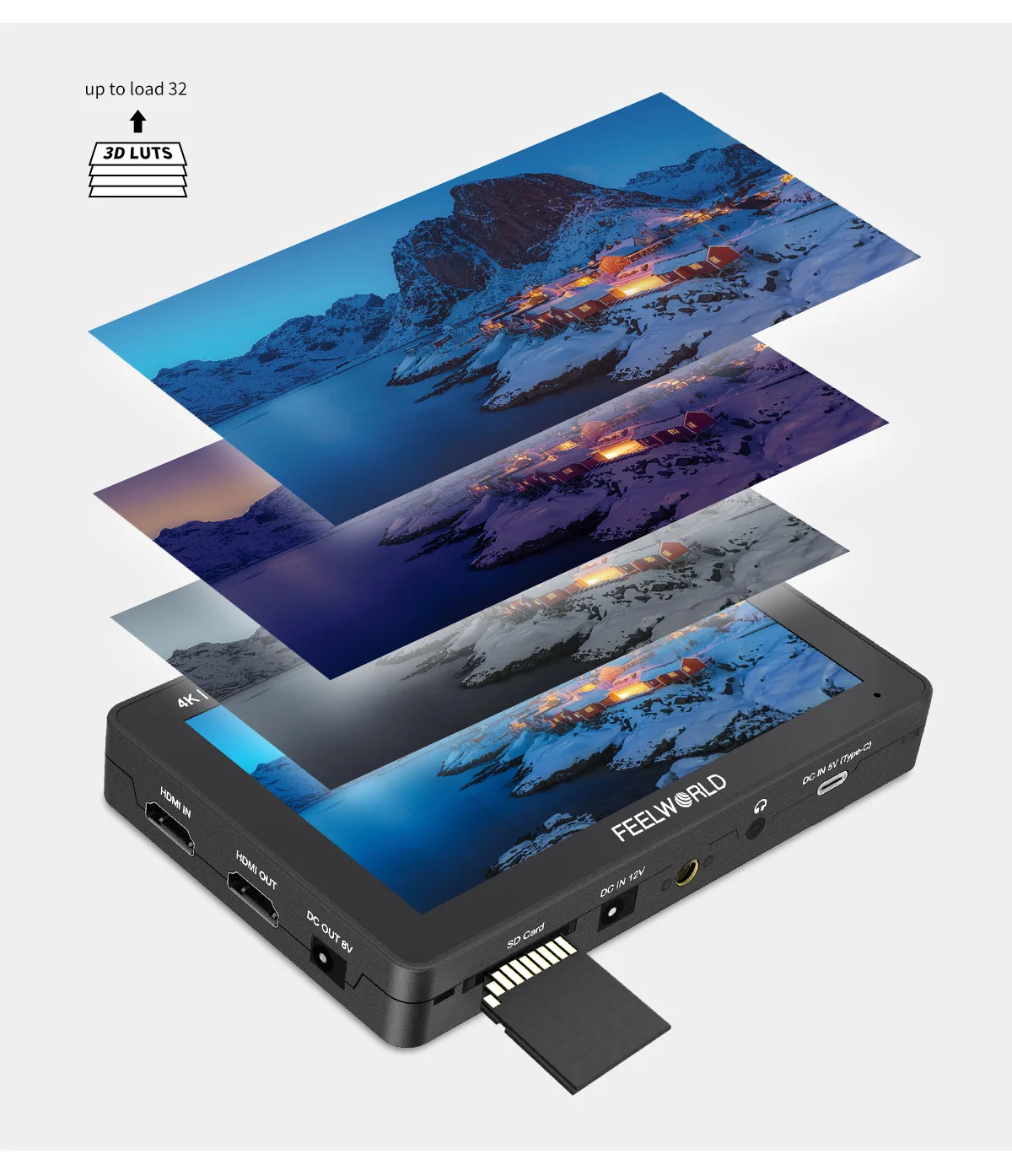

Supports Upload 32 Custom LUTs

3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via SD card(up to load 32).

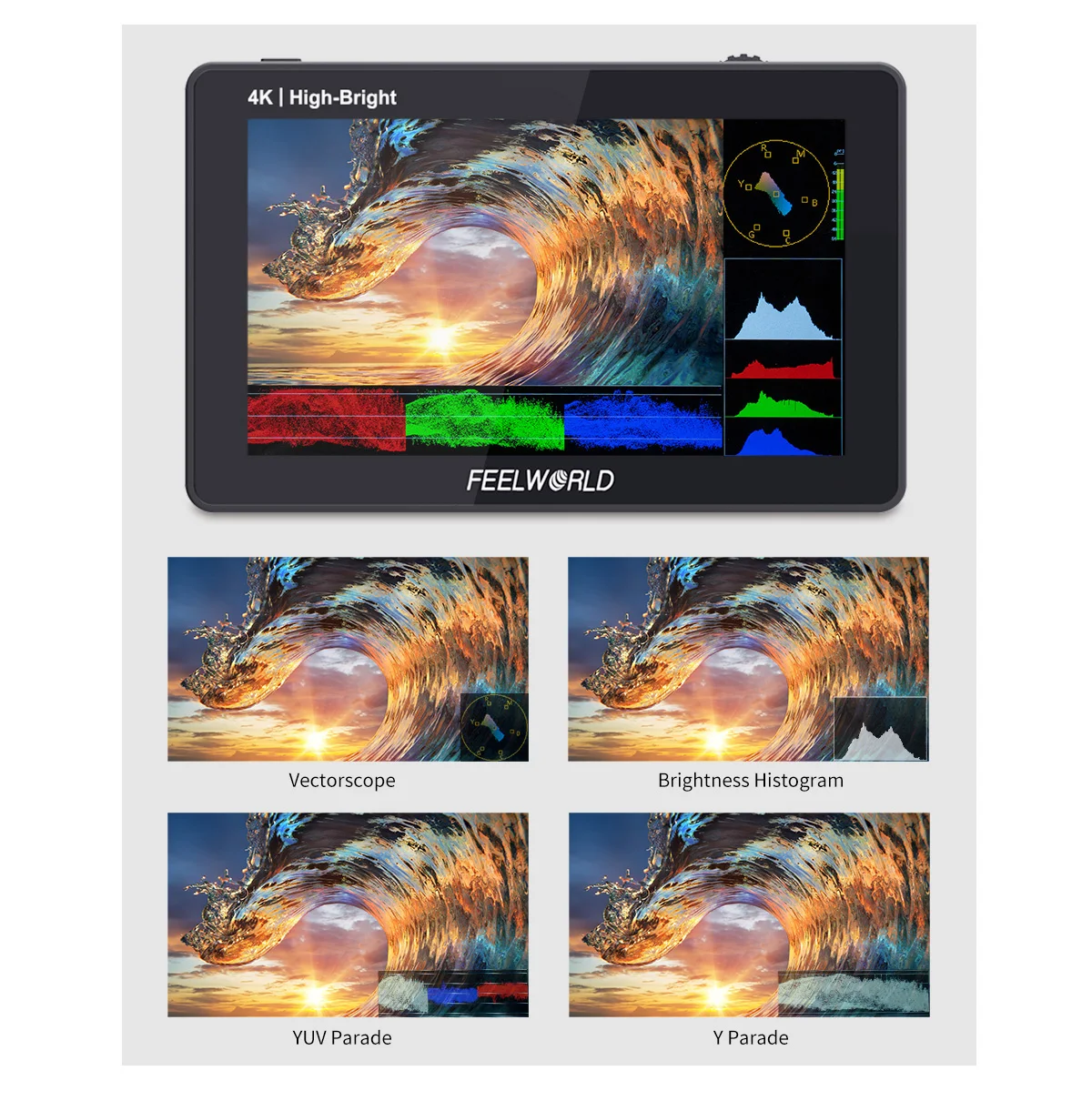

Accurate Waveform Monitoring

Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode.

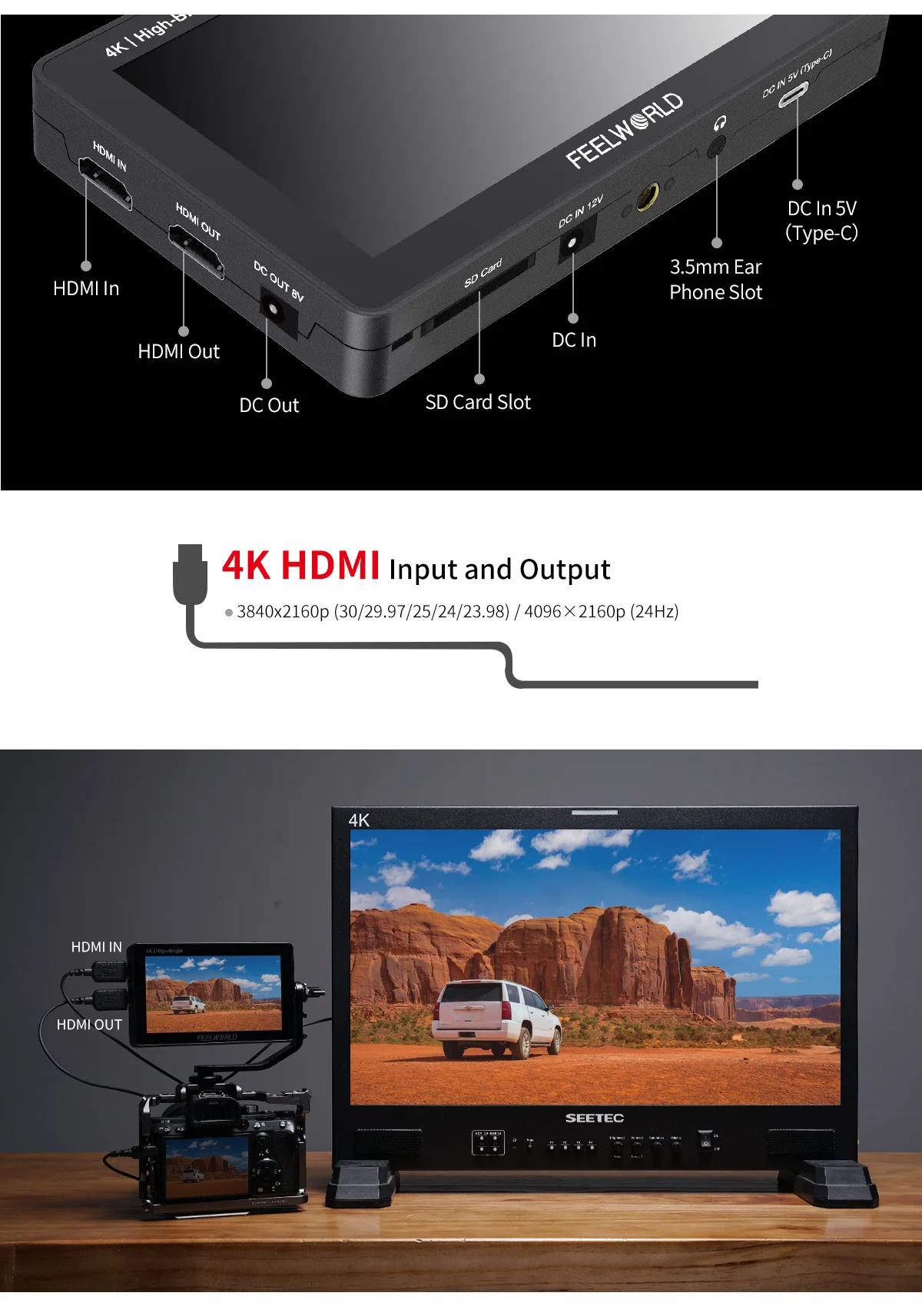

4K HDMI Input and Output

Support 4K@30Hz signal input and output, transmitted without loss,and the screen is clearer.

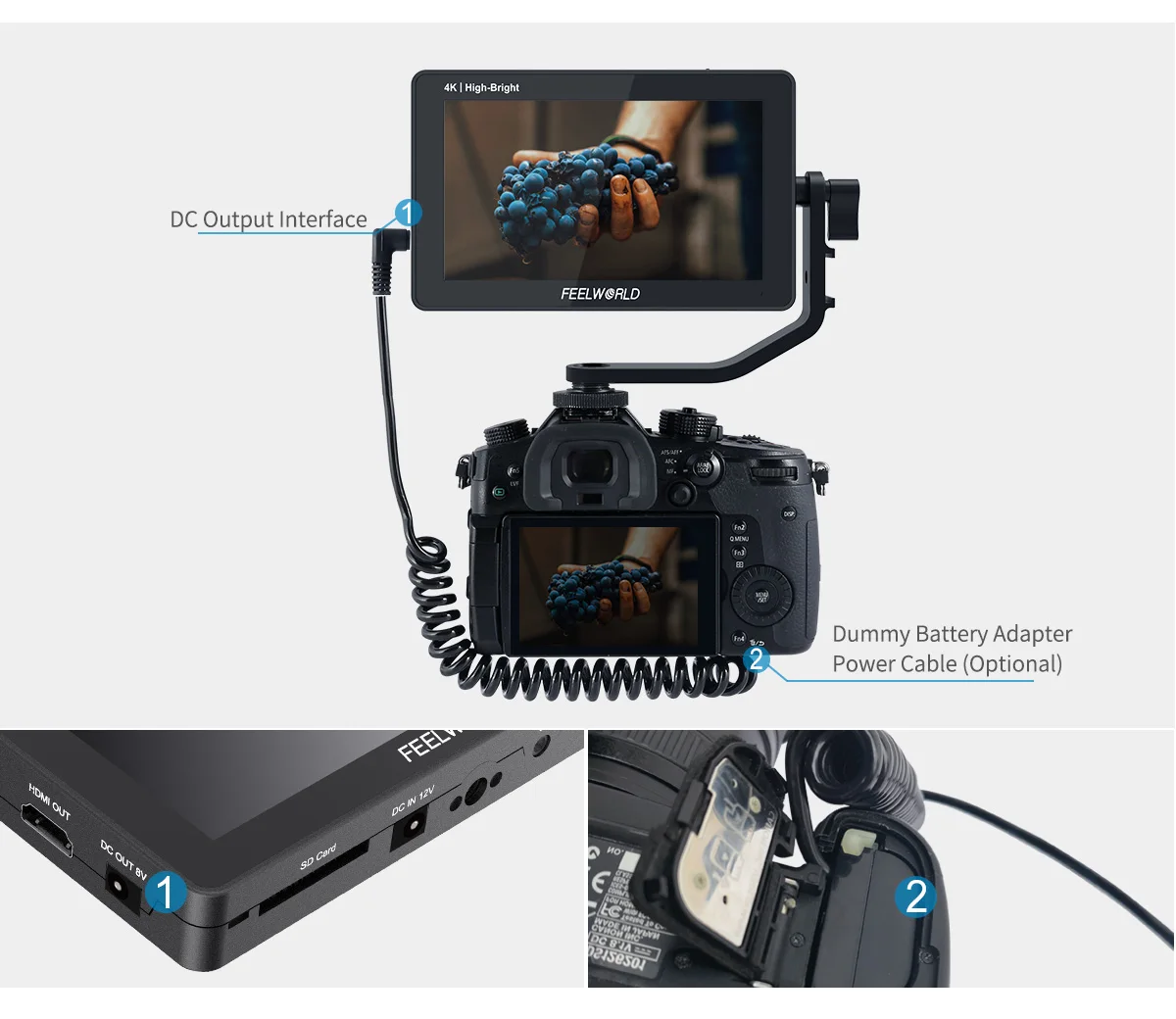

DC OUT, Power Your DSLR or Mirrorless Camera

F6 PLUSX provides auxiliary power out, allowing shooters to power their cameras. With a battery adapter cable (Optional), the F6 PLUSX extends camera run-time, while providing a more usable display.

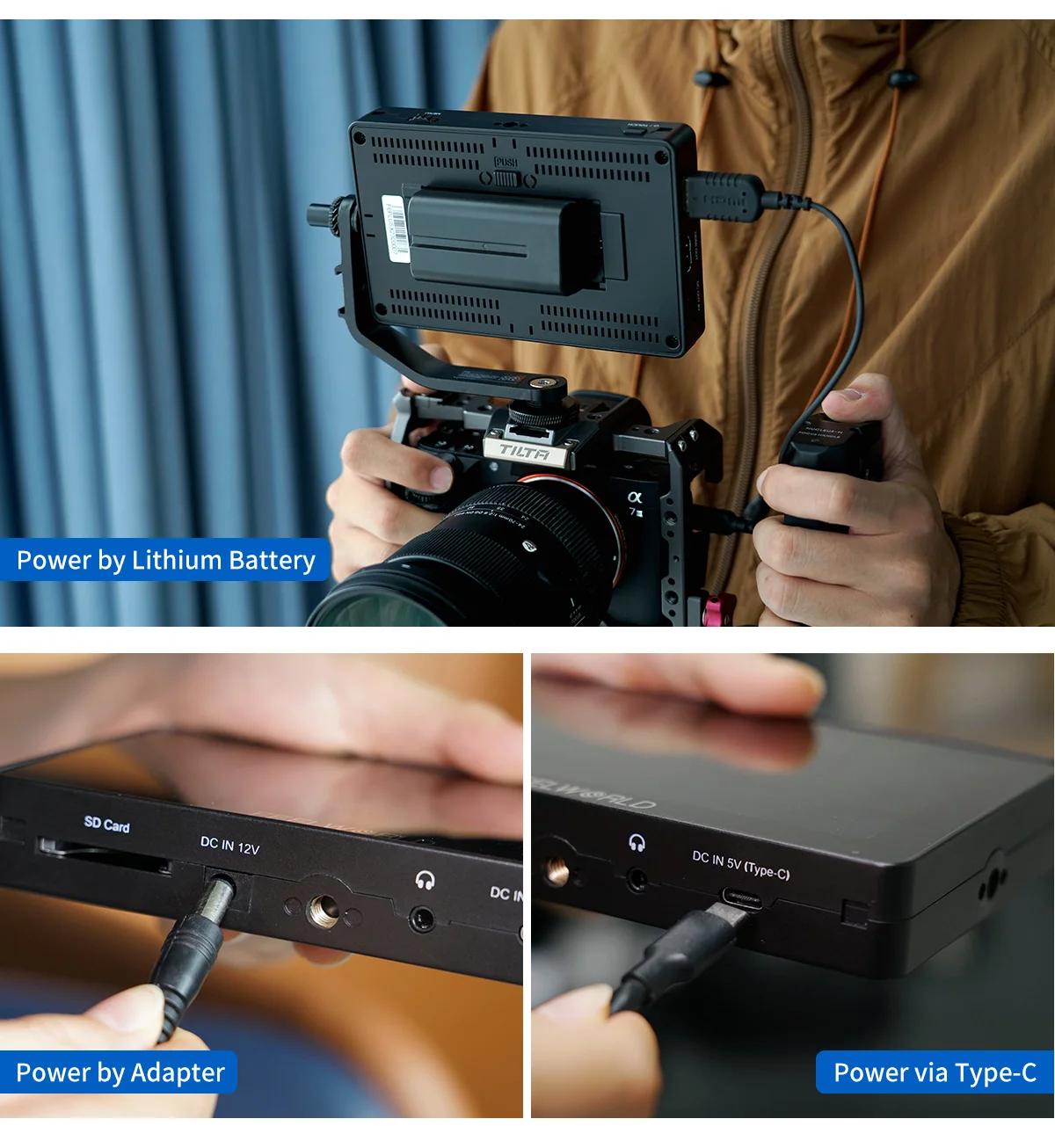

Multiple Power Supply Ways

F6 PLUSX has multiple power supply ways, providing strong power endurance.

1.Power supply through 12V DC power input (can be using 12V/1.5A adapter)

2.For outdoor shooting ,you can power supply by dual-purpose battery plate (compatible with Sony NPF series battery and Canon LP-E6 battery).

3. Supports 5V Type-C input, which can be powered by mobile phone charger or power bank. (At least 5V/2A).

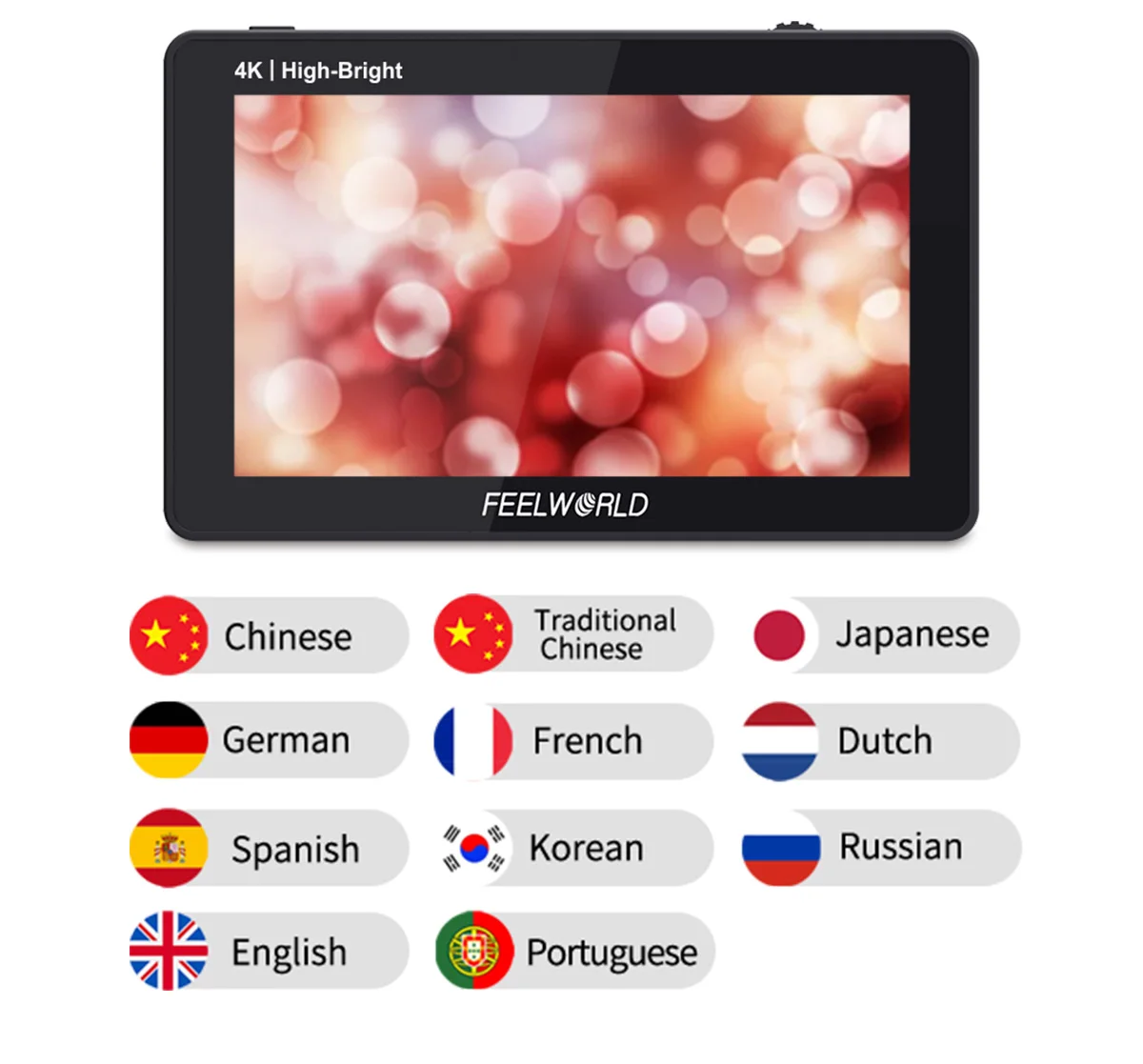

Multi Languages Support

F6 PLUSX built-in up to 11 languages, meet the different needed.

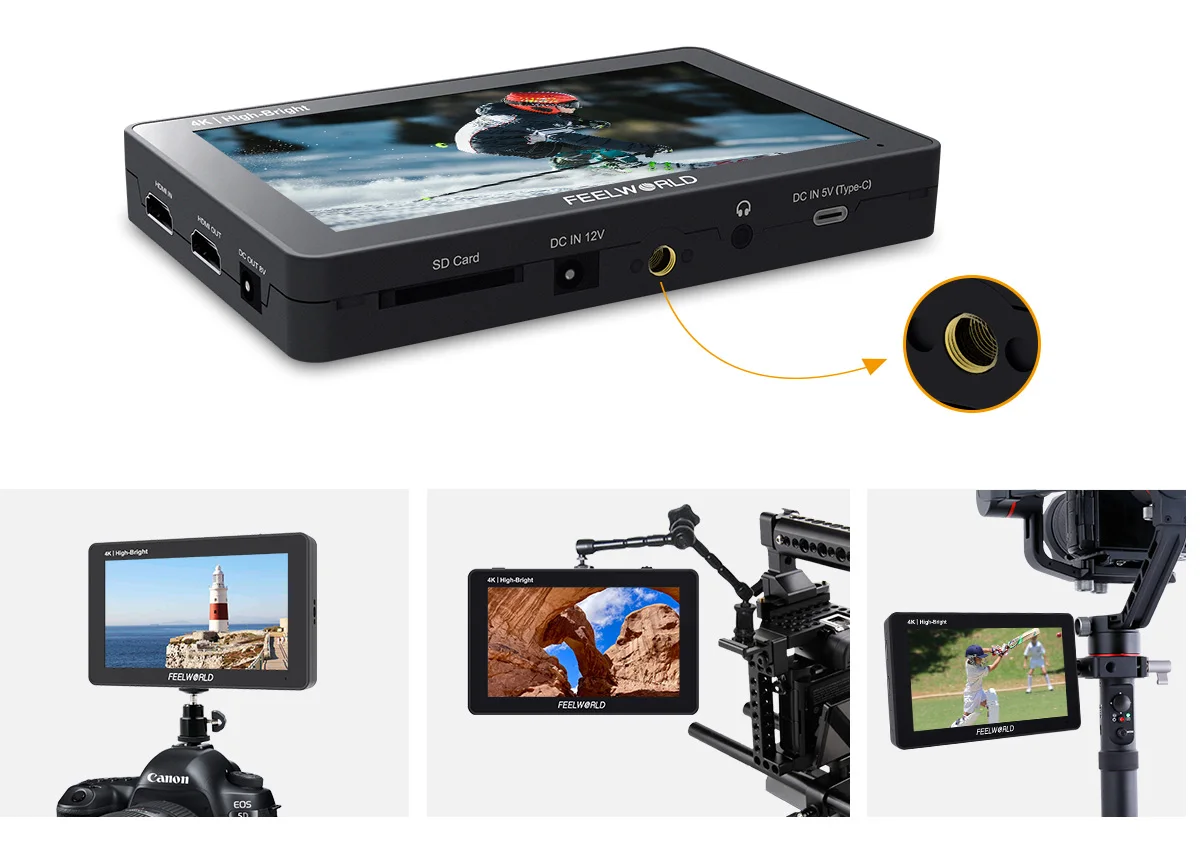

Multiple Mounting Points, Meet Different Need of Monitoring

The monitor features 3 standard 1/4” mounting threads (top, bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Whether it is horizontal or vertical shooting, you can accurately monitor.

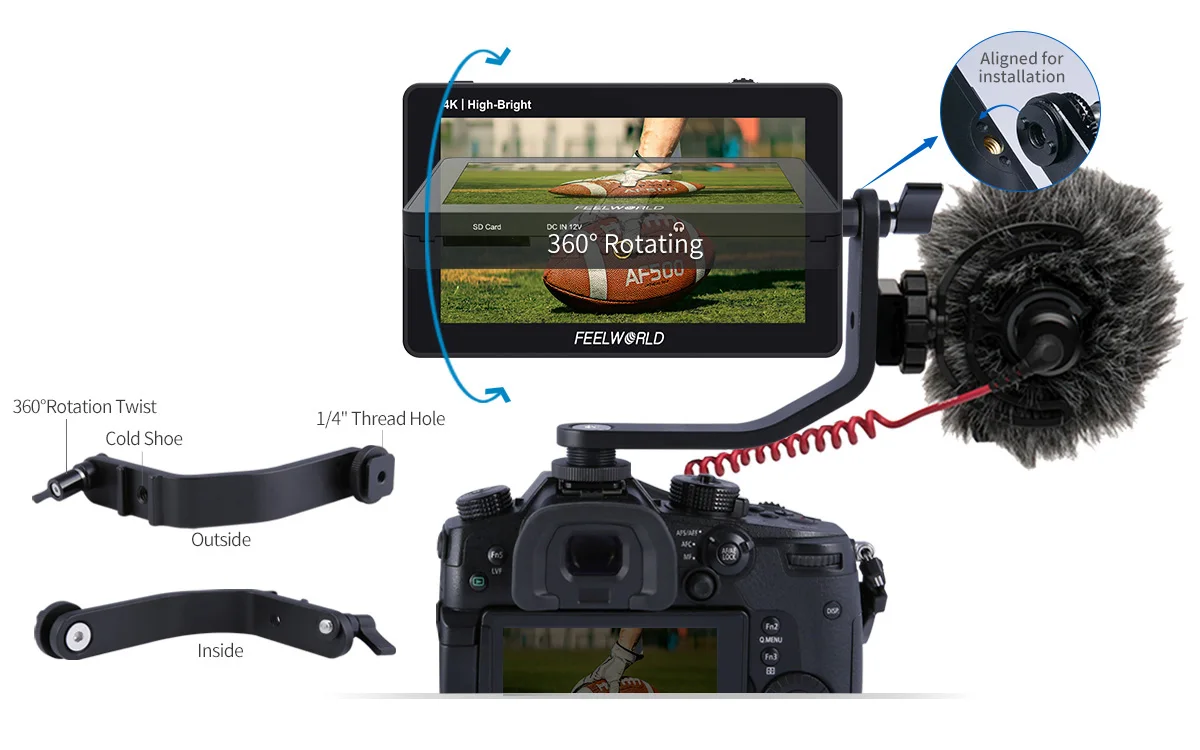

Convenient Mounting - Tilt Arm

The monitor will ship with a cold shoe mounted Tilt Arm. Shooters will have a secure way to position their monitor while maintaining a low profile.

• Allows F6 PLUSX to rotate 360 degrees for viewing convenience

• Secure and lightweight mounting via shoe mount or 1/4"-20 thread

• Includes a shoe mount of its own for accessories like a microphone, LED light, or wireless receiver, etc.

• There are two small dots on the tilt arm, which are aligned with the monitor for installation, the connection is more stable, just grab the monitor to rotate without loosening the screws.

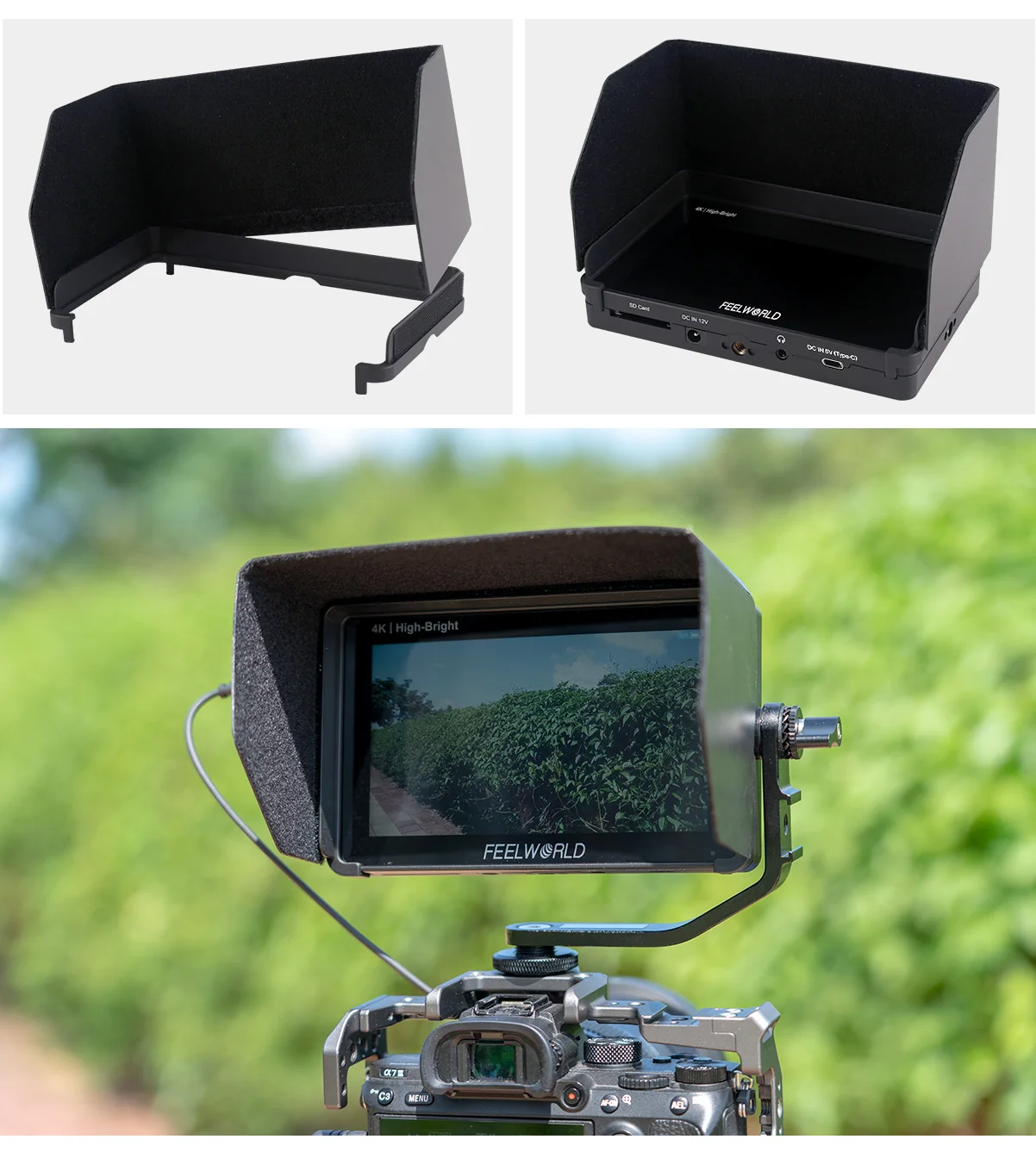

Portable Sunshade, Easy Install

You also can use the sun-hood resist strong light when outdoor shooting. It is easy to install and portable.
