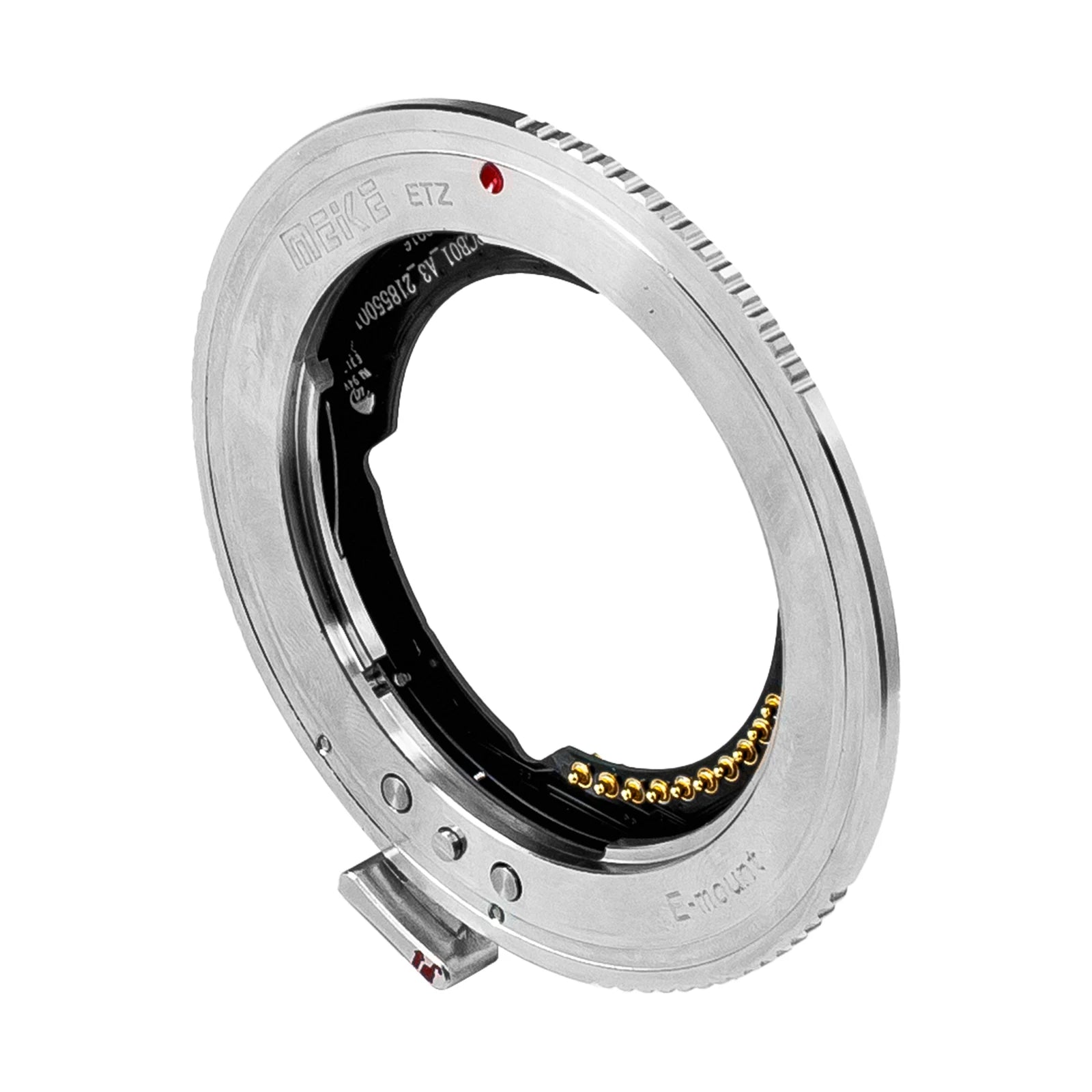

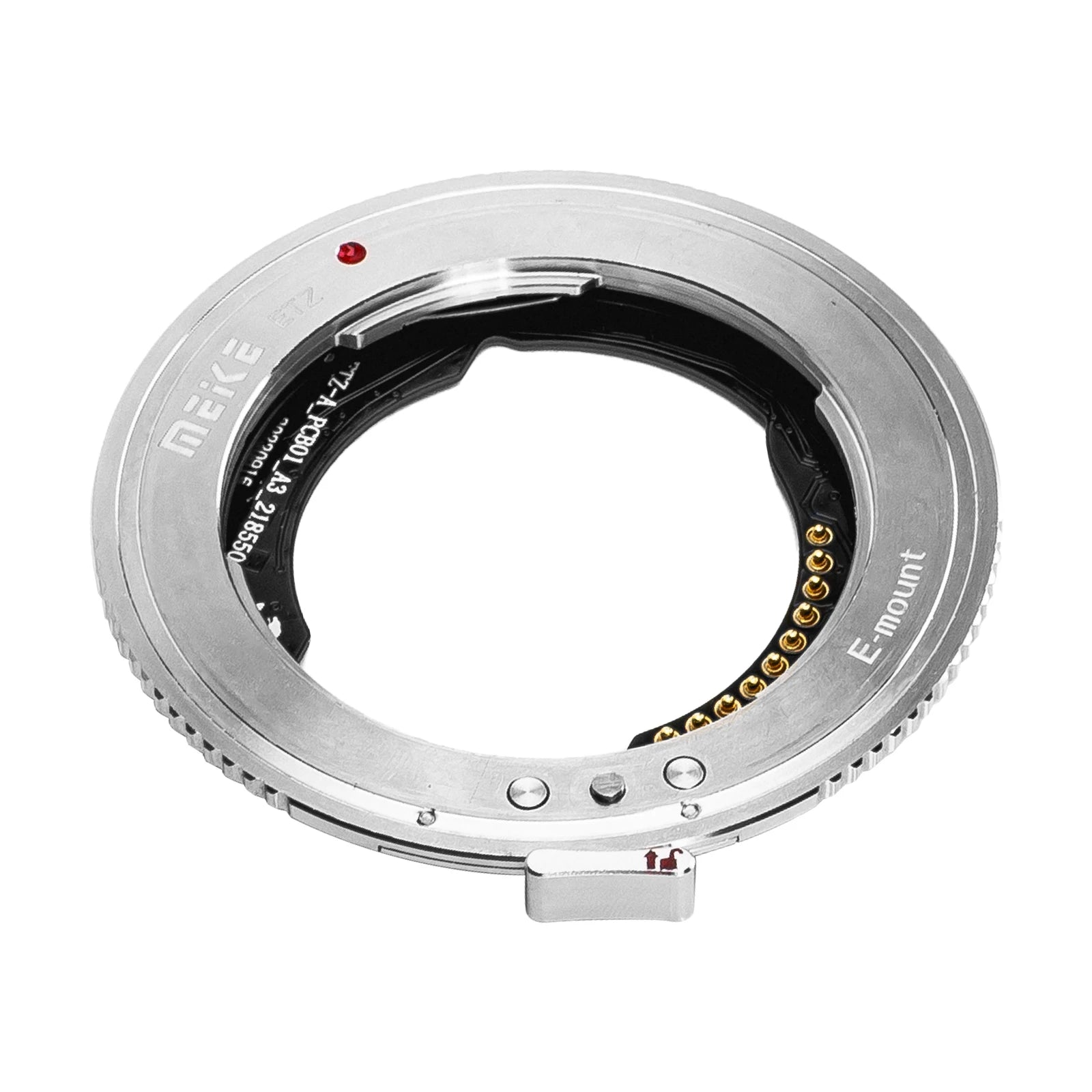

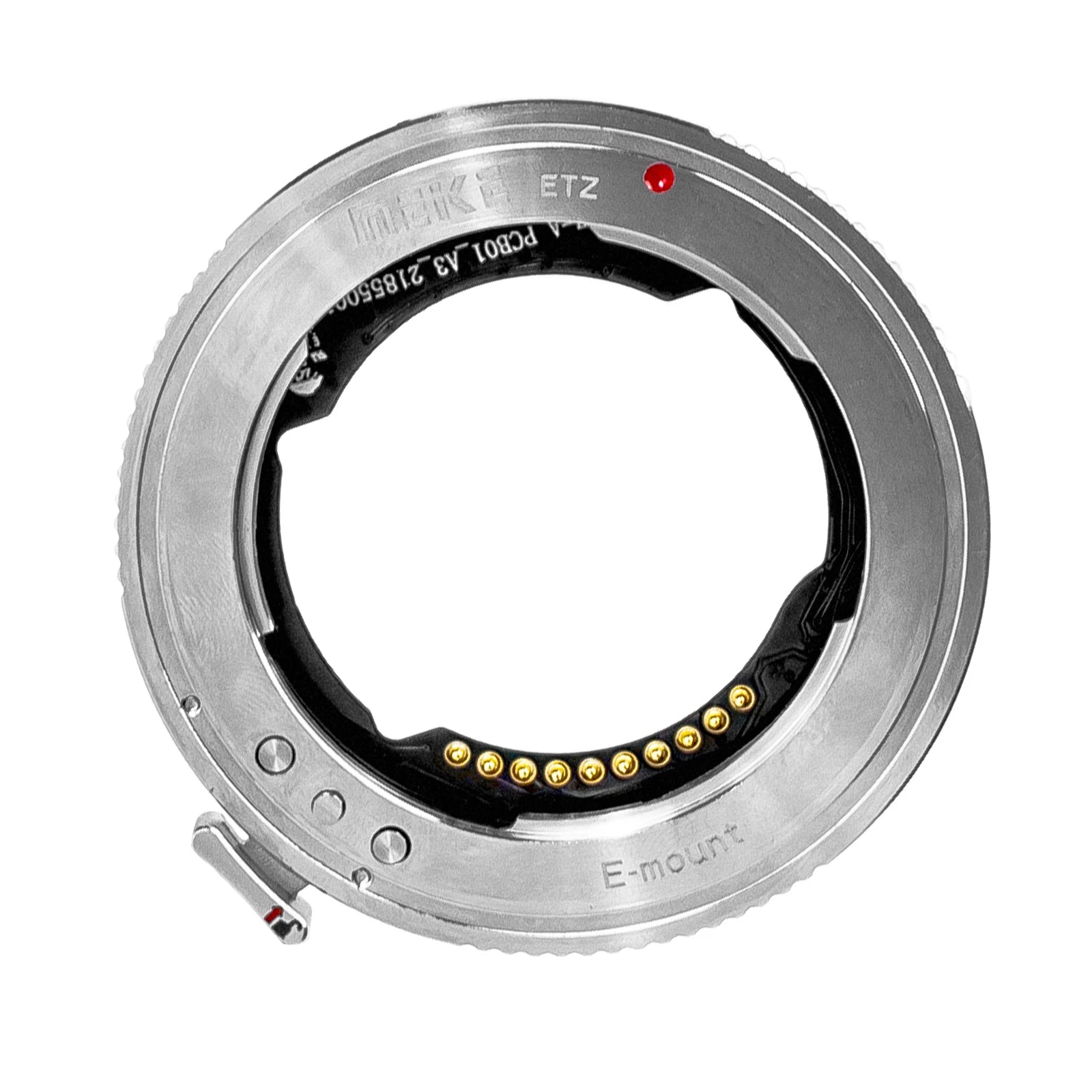

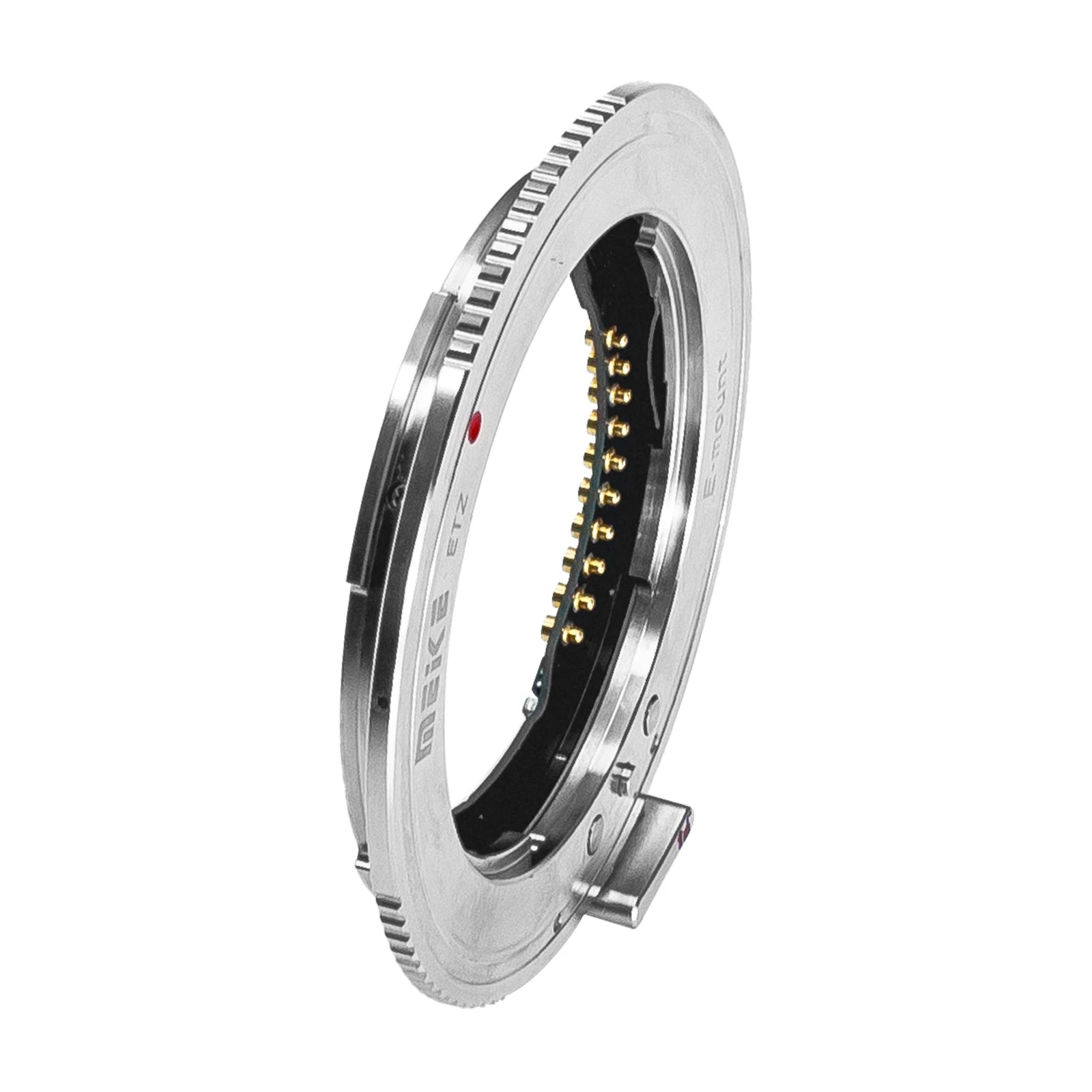

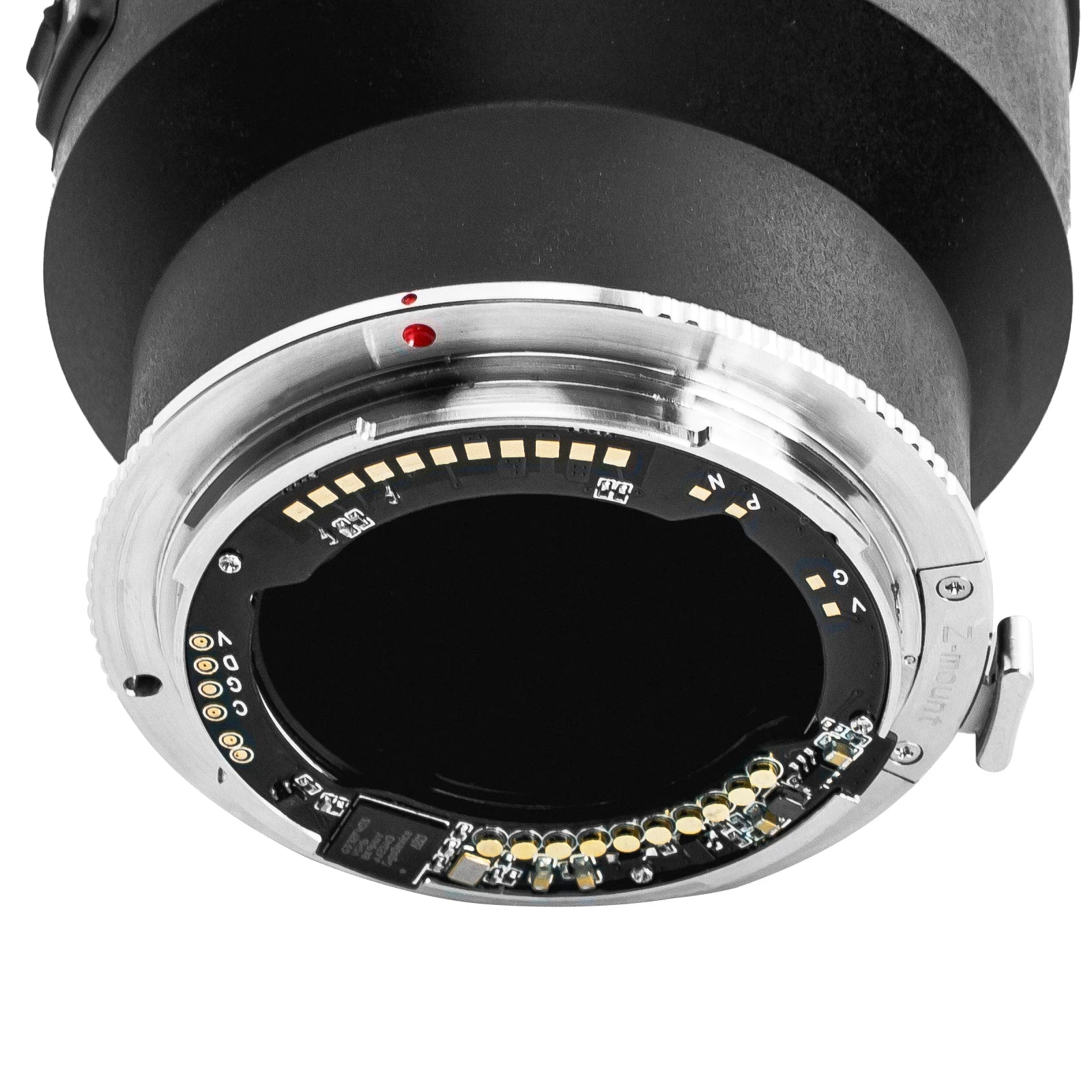

Meike Mount Adapter ETZ for Sony E Mount Lenses to Nikon Z Cameras



Feature:



Maximum diameter and length:

Packing size: 72*28*87mm

Φ65.2 X 2mm

Net weight: 44.2g (0.097lb)

Adapter front end: E-Mount camera lens

Adapter rear end: Nikon Z-mount camera

Auto Focus：Support

Auto aperture：Support

Support IS image stabilization system

EXIF Signal Transmission





E to Z mount adapter manual :



The E to Z mount adapter is designed with a special protocol for the combined application of E-mount lenses and Nikon Z-mount cameras:



1.An adapter for most automatic E-mount lenses and manual E-mount lenses without contacts from Sony original and auxiliary factory.



2.Most of the options in Menu are available, such as vibration reduction, AF-S\AF-C\MF focus mode,auto synchronized aperture, and AF-F full time autofocus for video shooting.



3.In environments where it is difficult to focus, such as low light levels, it is recommended to switch the focus to center single point AFor center focus area AF.



4.When shooting video and taking pictures of people and animals, it is recommended to turn on face and eye recognition in Menu and use auto area AFfor a better experience.





Latest upgrade firmware:



1. Download the latest upgrade firmware for the mount adapter from the official website or request it from customer service;


2. Align the back cover mounting mark with upgrade port with the Nikon Z-mount mounting mark on the mount adapter, turn the back cover in a counterclockwise direction until you hear a "click" to install it in place, then use the Type-C cable to connect the computer and the Type-C upgrade port on the back cover, and the computer will show the "ETZ" disk drive.



3. Copy the upgrade firmware of the mount adapter to the "ETZ" disk drive, a progress bar will be displayed, wait 20 seconds for the upgrade to complete.



4. Double click the "version.txt" file in the "ETZ" disk drive to view the current upgraded firmware version.
