  3. SUNWAYFOTO DT-03R Two-way Tilt Head for Monopod and Tripod with Panoramic Rotation 15lbs Load Capacity
By AVShutter

SUNWAYFOTO DT-03R Two-way Tilt Head for Monopod and Tripod with Panoramic Rotation 15lbs Load Capacity

$109.99
$109.99 $109.99
$109.99
$109.99 $109.99

Two-way Head DT-03R

Model:  DT-03R

Base Diameter:2.4in.(62mm)

Height:3.5in.(90mm)

Body Material:T6061 Aluminum

Net Weight:0.9lb.(452g)

Load Capacity:33lb.(15Kgs)

Base Screw Thread:UNC3/8＂

DT-03R Two-way head is made of all metal material. T6061 grade aluminum main body and stainless steel main stree point.

It’s ideal for telephoto lens with heavy camera, compared with traditional heads, DT-03R is light weight, easy to operate and with high load capacity.

Hard-anodized finish ensures it’s resistant to corrosion and abrasion, suitable to be used long time outdoors.

Perfect match with tripod and monopod.



Product Features:

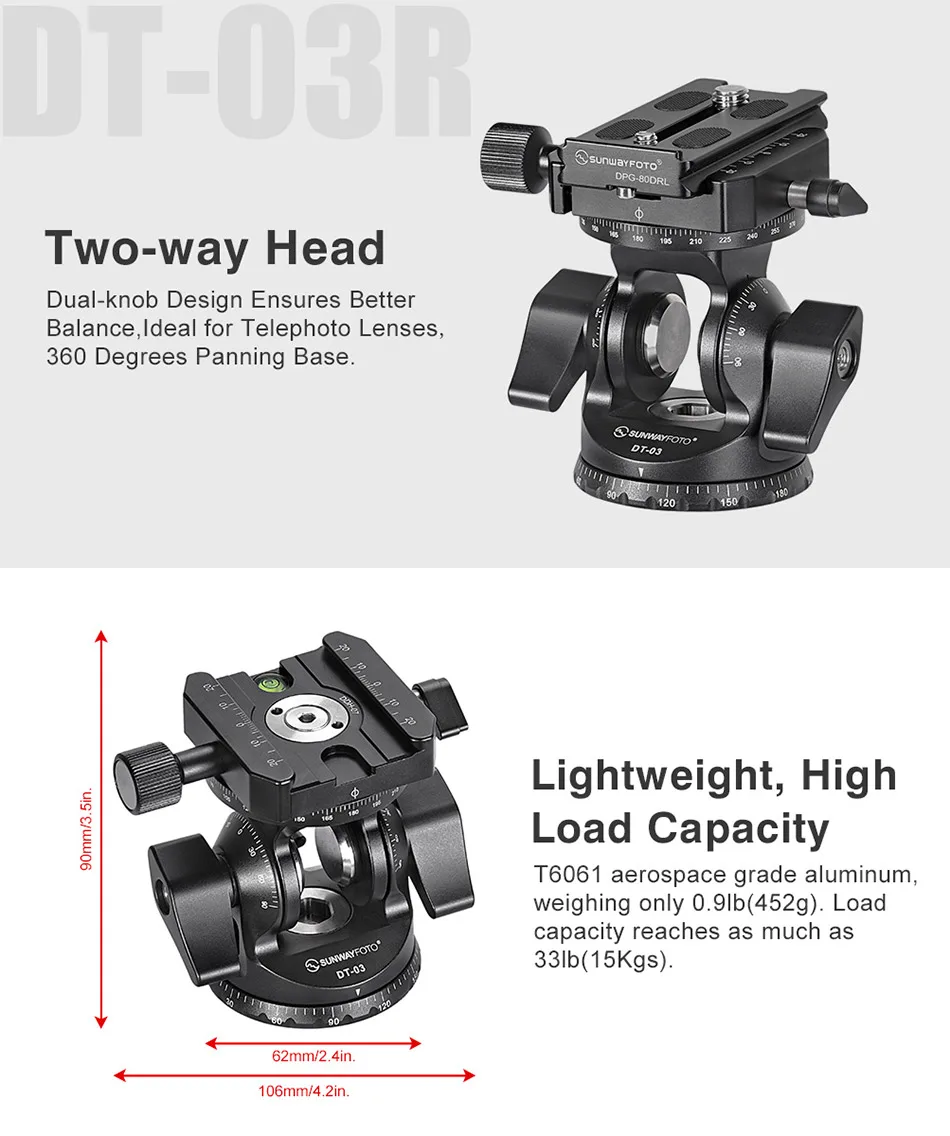

T6061 aerospace grade aluminum, weighing only 12.7oz(360g). Load capacity reaches as much as 33lb(15Kgs). Suitable for heavy and long telephoto lenses for shooting subjects in motion and bird watching.

Dual-lock knob on left and right side of the head, it can be locked by eiher one side or both sides, easy to operate. With both knobs locked, it reaches max locking strength and highest stability, ensuring the head is well balanced both sides and it also extends the longevity of the head.

The panning base is 360 degrees rotatable, steadily and smoothly; it can also be locked to avoid accidental shifting of the camera/lens which might influence focusing. Scale mark on the panning base can be used as a reference for stitching on panoramic shooting.


Elongated knobs on both sides provide better grip and easier operation; Both knobs as well as the panning base lock-knob feature ratchet mechanisms. Can be pulled out and relocated at any position desired to avoid interference with other parts at the base.

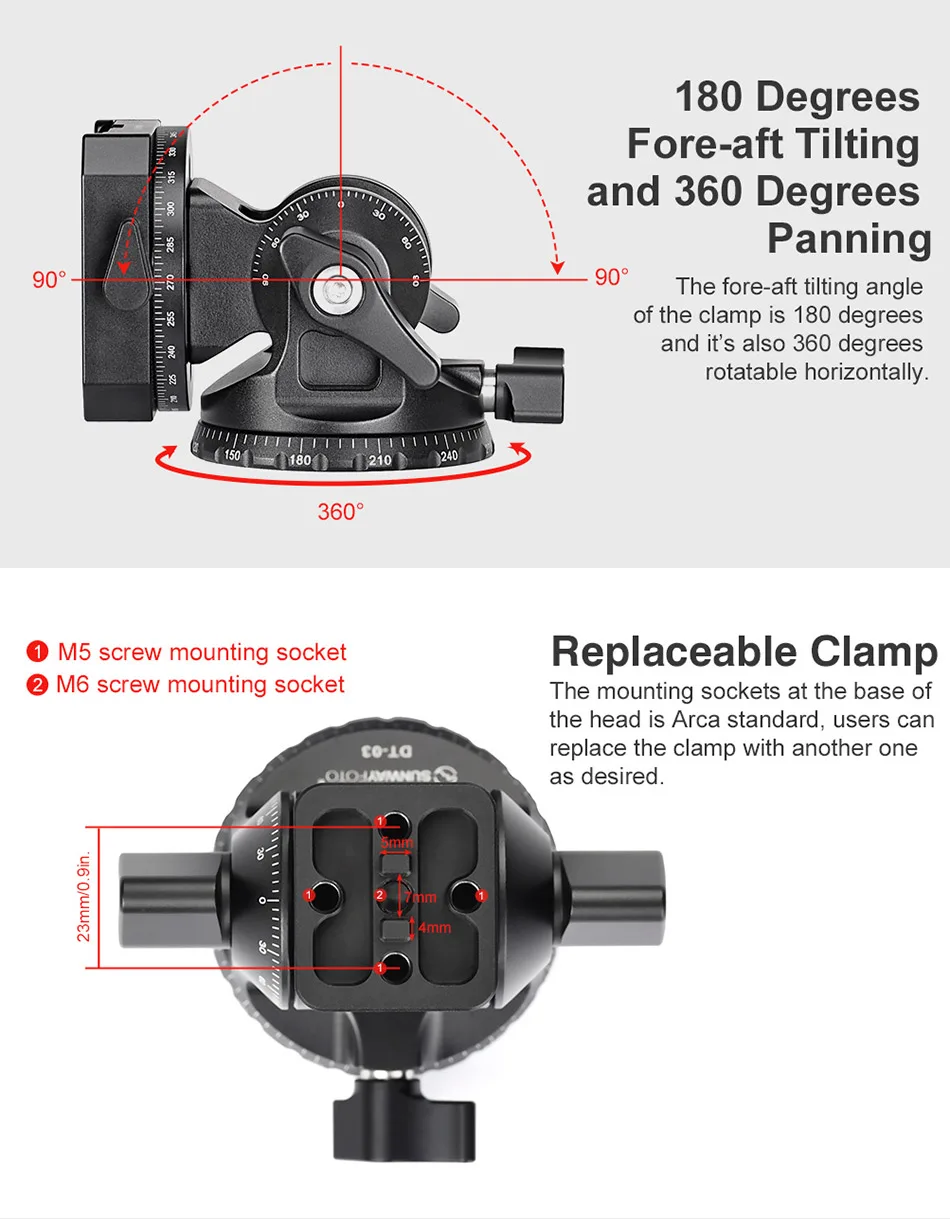

The mounting hole at the base of the head is Arca standard, users can replace the clamp with another one as desired.

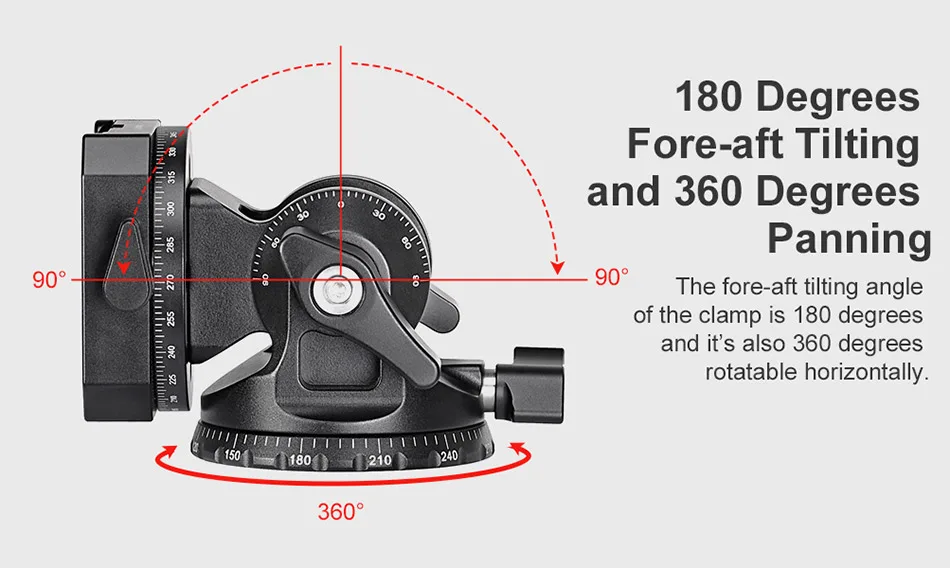

The fore-aft tilting angle of the clamp is 180 degrees and it’s also 360 degrees rotatable horizontally.

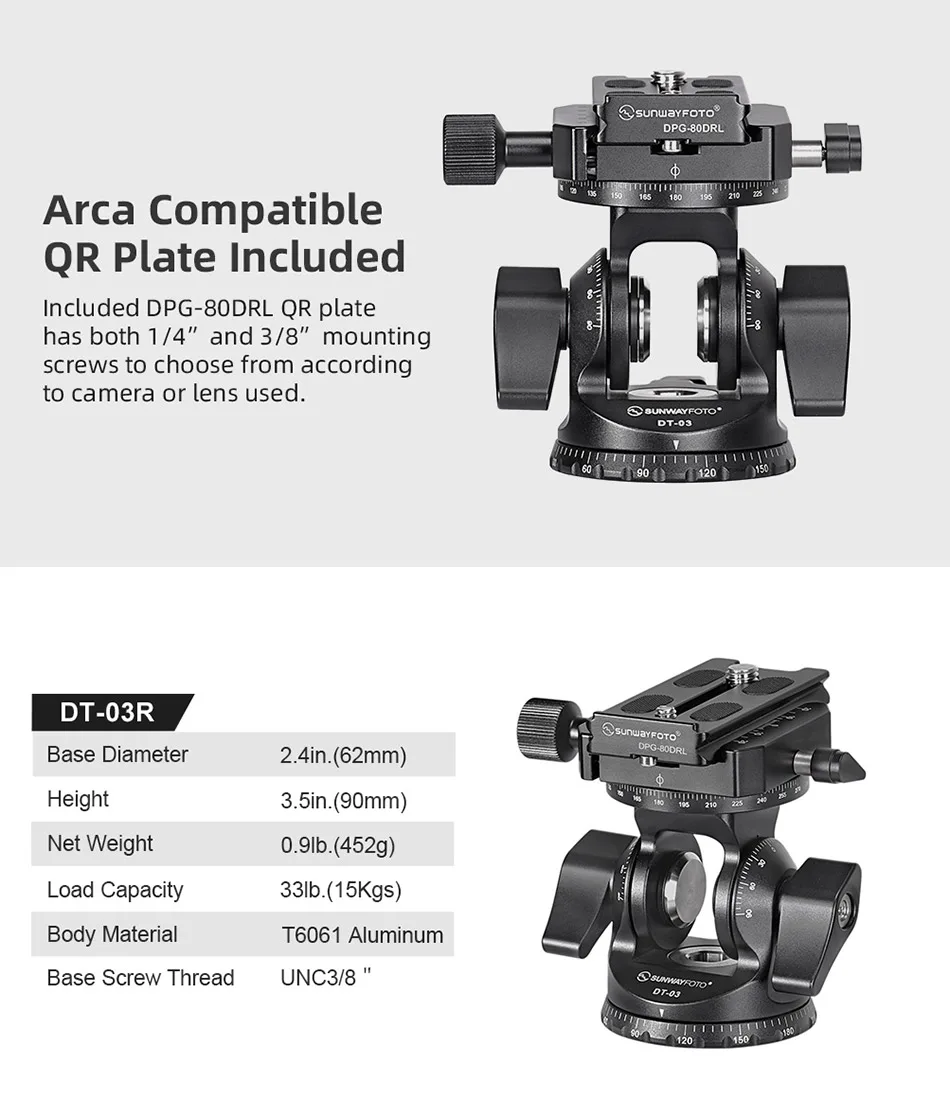

QR plate DP-80DLR included with both 1/4” and 3/8” screws, users can choose according to your camera or lens conveniently.
